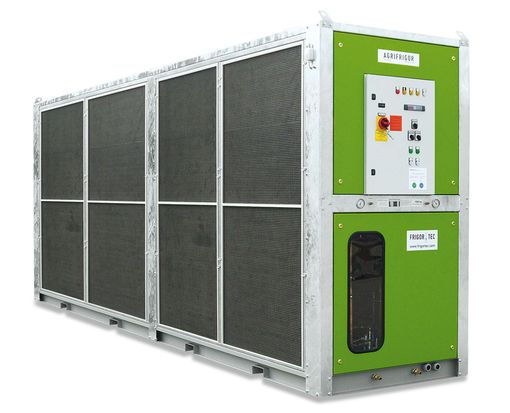

AGRIFRIGOR™ Dehumidifiers – Heat pumps

With an AGRIFRIGOR™ dehumidifier air is conditioned for drying hay. The process is particularly economical and effective by using a heat pump. This is possible because the evaporator and the condenser are used in this process. Hay in the best quality produce good milk & good meat; the health of the animals is significantly improved.

Hay drying units for dehumidifying hay in any weather

Product overview

Drying hay with a heat pump

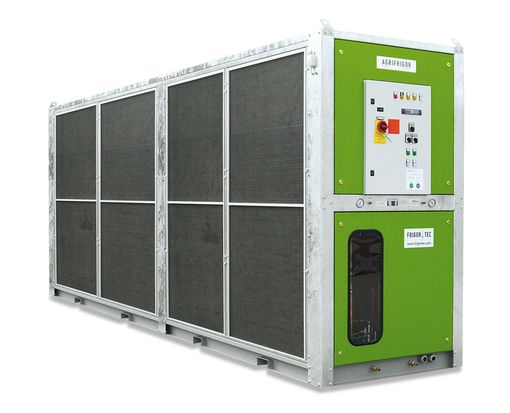

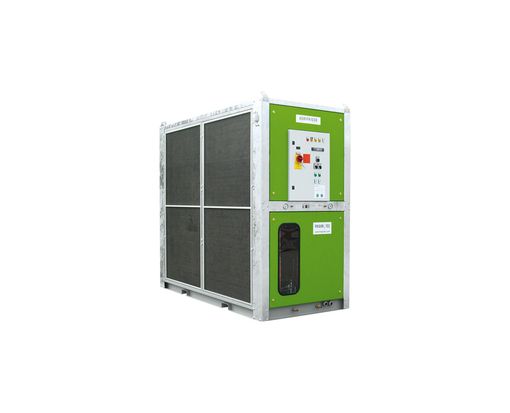

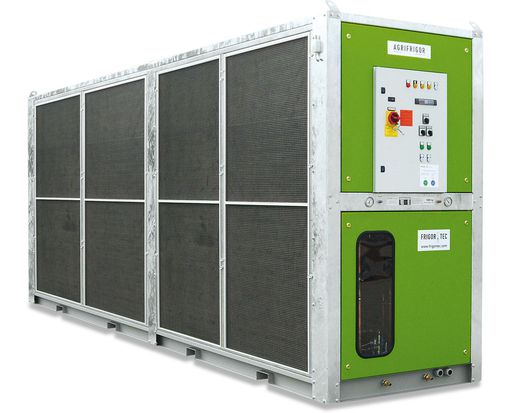

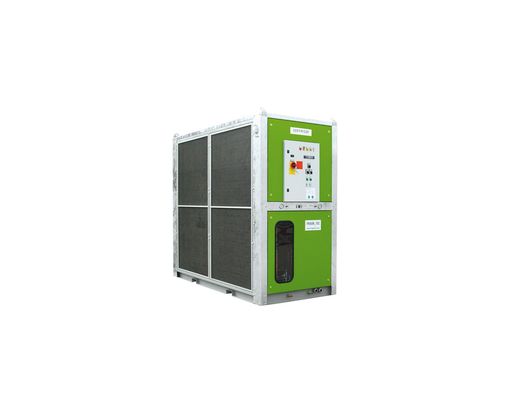

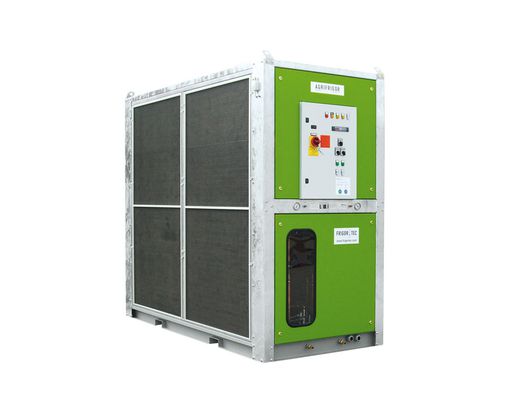

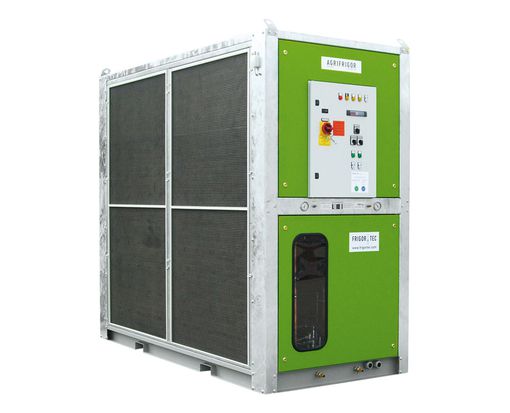

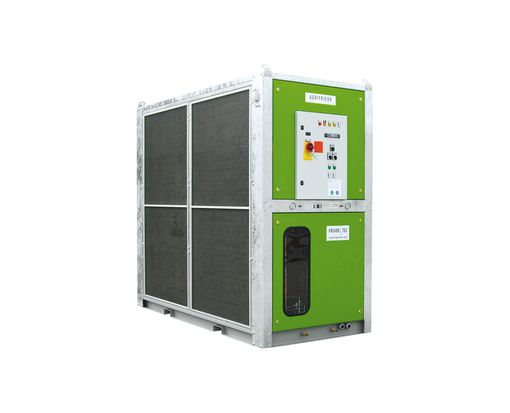

AGRIFRIGOR™HT 50

  • Hay box dimension (m2): up to 50
  • Dehumidifying operation (m3/s): 3,0 - 5,5
Hay drying with a hay drying unit

AGRIFRIGOR™HT 60

  • Hay box dimension (m2): up to 75
  • Dehumidifying operation (m3/s): 4,0 - 6,7
Dehumidifying hay with a hay dryer

AGRIFRIGOR™HT 75

  • Hay box dimension (m2): up to 100
  • Dehumidifying operation (m3/s): 5,0 - 8,5
Drying and dehumidifying hay and hops

AGRIFRIGOR™HT 100

  • Hay box dimension (m2): up to 125
  • Dehumidifying operation (m3/s): 6,5 - 11,0
Drying hay and alfalfa with a heat pump

AGRIFRIGOR™HT 125

  • Hay box dimension (m2): up to 150
  • Dehumidifying operation (m3/s): 8,0 - 14,0
Hay-drying system for machine hay drying

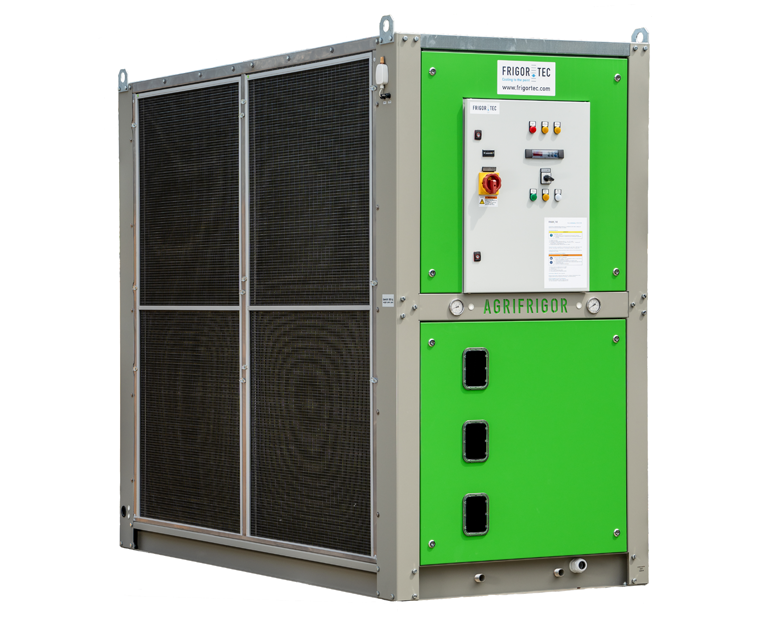

AGRIFRIGOR™HT 150

  • Hay box dimension (m2): up to 200
  • Dehumidifying operation (m3/s): 9,5 - 16,5
Drying hay with a hay-drying system and heat pump

AGRIFRIGOR™HT 200

  • Hay box dimension (m2): up to 250
  • Dehumidifying operation (m3/s): 13,4 - 22,0
Hay drying unit for dehumidifying hay

AGRIFRIGOR™HT 250

  • Hay box dimension (m2): up to 300
  • Dehumidifying operation (m3/s): 14,5 - 25,0
Hay dryer with heat pumps

AGRIFRIGOR™HT 300

  • Hay box dimension (m2): up to 350
  • Dehumidifying operation (m3/s): 19,0 - 33,0
Hay drying with dehumidifier heat pumps

AGRIFRIGOR™HT 400

  • Hay box dimension (m2): up to 400
  • Dehumidifying operation (m3/s): 26,8 - 44,0
Conserve hay with a hay-drying system

AGRIFRIGOR™HT 500

  • Hay box dimension (m2): up to 500
  • Dehumidifying operation (m3/s): 29,0 - 50,0

AGRIFRIGOR™

Drying hay with a heat pump

HT 50

Hay drying with a hay drying unit

HT 60

Dehumidifying hay with a hay dryer

HT 75

Drying and dehumidifying hay and hops

HT 100

Drying hay and alfalfa with a heat pump

HT 125

Hay-drying system for machine hay drying

HT 150

Drying hay with a hay-drying system and heat pump

HT 200

Hay drying unit for dehumidifying hay

HT 250

Hay dryer with heat pumps

HT 300

Hay drying with dehumidifier heat pumps

HT 400

Conserve hay with a hay-drying system

HT 500

Hay box dimensionup to 50 m²up to 75 m²up to 100 m²up to 125 m²up to 150 m²up to 200 m²up to 250 m²up to 300 m²up to 350 m²up to 400 m²up to 500 m²
ELECTRICAL DATA
Max. current consumption24 A24 A28 A32 A42 A55 A63 A95 A110 A125 A190 A
Electrical connection12/32 kW/A12/32 kW/A15/32 kW/A18/32 kW/A25/50 kW/A30/63 kW/A40/63 kW/A45/100 kW/A60/125 kW/A80/125 kW/A90/250 kW/A
SUITABLE FOR AIR VOLUME
Dehumidifying operation3,0 - 5,5 m³/s4.0 - 6.7 m³/s5.0 - 9.5 m³/s6.5 - 11.0 m³/s8.0 - 14.0 m³/s9.5 - 14.5 m³/s13,4 - 22,0 m³/s14.5 - 25.0 m³/s19.0 - 33.0 m³/s26.8 - 44.0 m³/s29.0 - 50.0 m³/s
Ambient air operation max.8,0 m³/s11.0 m³/s13.0 m³/s17.0 m³/s20.0 m³/s25.0 m³/s33,0 m³/s38.0 m³/s50.0 m³/s64.0 m³/s76.0 m³/s
Dimensions2.100 x 1.150 x 1.900 mm (L x W x H)2.100 x 1150 x 1.900 mm (L x W x H)2.100 x 1150 x 1.900 mm (L x W x H)2.500 x 1.250 x 2.000 mm (L x W x H)2.700 x 1.250 x 2.200 mm (L x W x H)2.900 x 1.250 x 2.400 mm (L x W x H)3.600 x 1.250 x 2.400 mm (L x W x H)3.900 x 1.350 x 2.500 mm (L x W x H)5.800 x 1.250 x 2.400 mm (L x W x H)7.200 x 1.250 x 2.400 mm (L x W x H)7.800 x 1.350 x 2.500 mm (L x W x H)
Weight800 kg850 kg850 kg900 kg1.000 kg1.200 kg1.300 kg1.600 kg2.400 kg2.600 kg3.200 kg

Product description

Handling and operation

  • Simple, convenient operation by fully-automatic control
  • Quick weather-dependent reaction by temperature and humidity sensors
  • Icing problems prevented by a continuous system monitoring and the integrated HYGROTHERM™ circuitry
  • Low risk of soiling due to wide blade spacing of the heat exchanger
  • Easy to clean with removable, large filters with quick-release fasteners

Energy and environmental balance

  • Economical solution due to low power consumption
  • With environmentally friendly safety refrigerant without CFC or HCFC
  • Energy-efficient models with frequency control
  • Operating hours counter / Indicator light

Workmanship and quality

  • Robust industrial construction provides long service live
  • Soundproofed fans and compressors
  • Effective large-area coarse-dust filters – easy to clean
  • Full enclosure with quick-release fasteners
  • Differential pressure sensor, hay box
  • Fully automatic control
  • Temperature and humidity sensors
  • Vibration decoupling
  • Coated heat exchanger as corrosion protection
  • Additional tray for cleaning / Drip tray
  • Remote monitoring / Alarm modem
  • Air flap motor drives
  • Pressure display
  • Quality inspection with trial run at factory

Options

  • Controller with AGRICONTROL Siemens S7 DDC
  • Individual controller variants
  • Remote diagnosis
  • Generation of operational documentation

Know-How

Since 1963 we produce customised solutions for agricultural engineering and we have acquired extensive expertise in all aspects of all topics. We are glad to share our expertise with you.

Hay drying for better planning reliability and quality assurance

Technical hay drying and its advantages

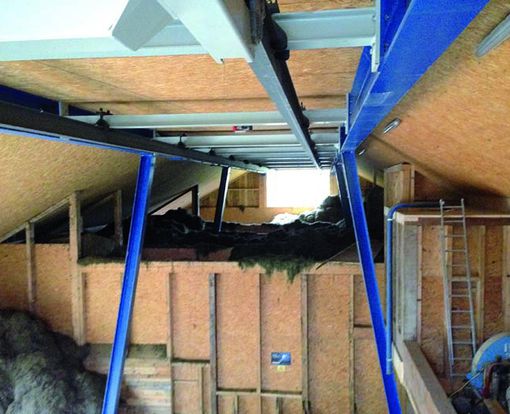

Correct design of hay boxes for machine hay drying

Designed to meet requirements as the basis for economical hay drying

Hay drying and haymaking

Quality in quantity – professional hay and plant drying

Hay drying guaranteeing good hay quality

How hay quality affects animal health

Highlights AGRIFRIGOR

  • Efficient thanks to heat recovery
  • Fully automatic SPS control
  • Dehumidifier for more power

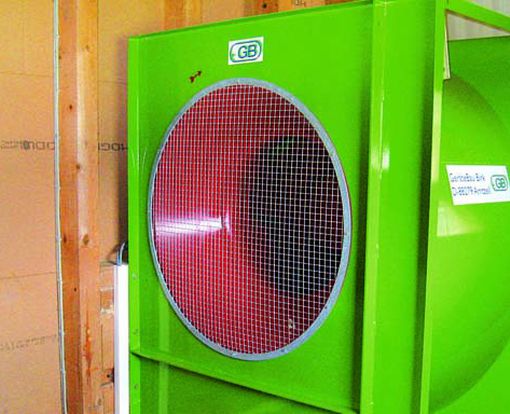

  • Powerful fans
  • Long service life, quiet operatio
  • Utmost individuality by the modular system
  • Advance in knowledge thanks to close contacts to institutes, universities and the dialogue with our customers
  • Innovational strength by modern, forward thinking product solutions
Our planning support - experts in agricultural engineering for over 60 years
  • Dimensioning of your drying system
  • Arrangement of boxes, air ducts, technology
  • Design of the roof extraction system
  • Coordination with your architect and hall constructor
  • Comprehensive documentation as free assistance
  • Aldo discover

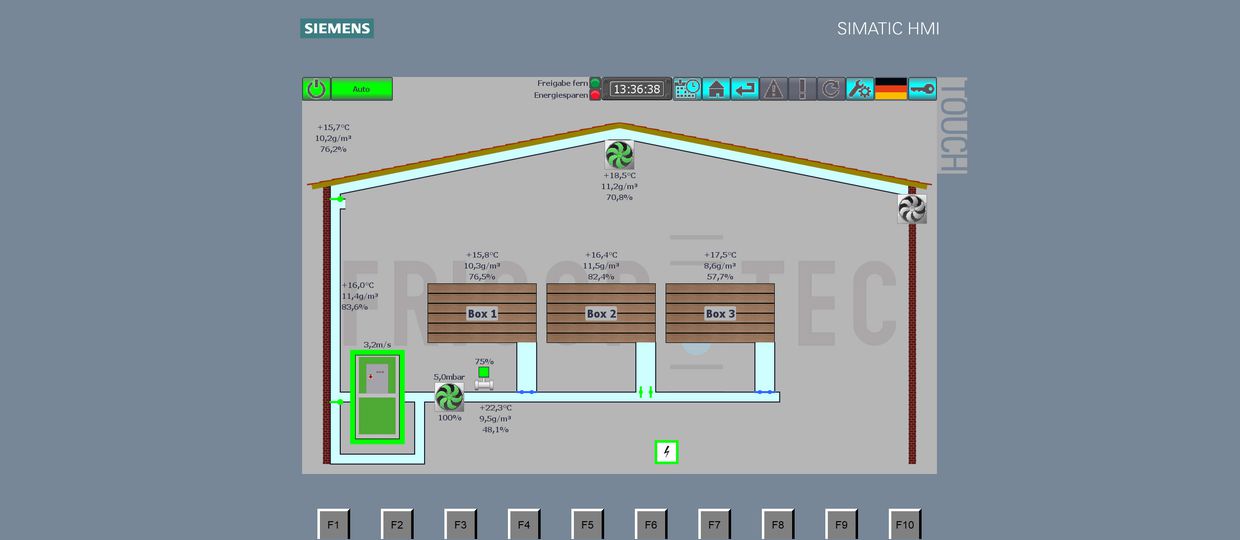

    Simple operation via Siemens control for hay dryers

    AGRICONTROL Siemens S7

    • Individual control of all switching operations
    • Screen display of the plant status
    • Ideal when employing several drying boxes
    • Remote data transmission possible via modem
