CRANEFRIGOR™ Crane cabin cooling units

Our CRANEFRIGOR™ crane cabin air conditioning units come in different models and designs, performance limits, operating voltages, and dimensions. Choose your product requirements.

Fields of application

  • Optimal crane cabin air conditioning (cooling, heating, and dehumidifying) for ideal working conditions and protection of control and performance electronics
  • First-class suitability in hot operating environments, e.g., steel works, foundries, and hot rolling mills, as well as for harbours and container terminals
  • Tested and used successfully worldwide
Crane cabin air-conditioning unit with individual temperature selection

Product overview

For crane air conditioning in heat plants

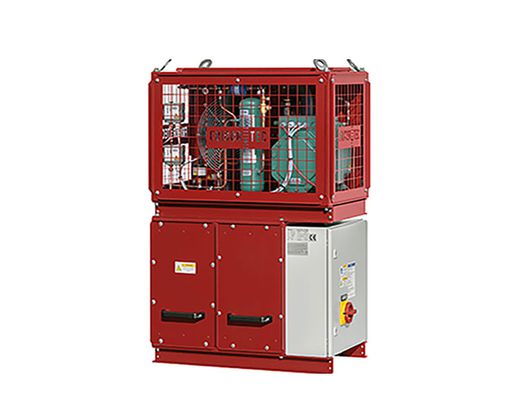

CRANEFRIGOR™TB

Data sheet
  • Installation: Wall, Roof, Remote
  • Nominal cooling capacity: up to 7,0 kW
  • Temperature range: -25 °C to +85 °C
Cooling crane cabins

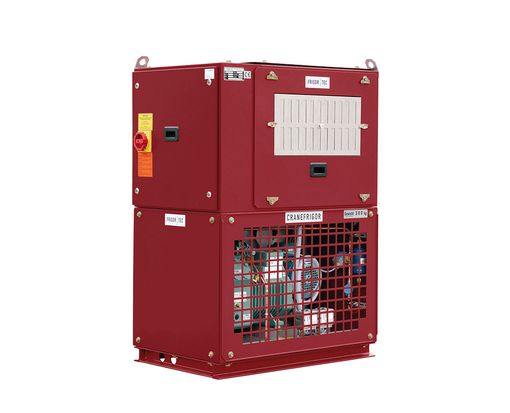

CRANEFRIGOR™TC

Data sheet
  • Installation: Wall, Roof, Remote
  • Nominal cooling capacity: up to 12,5 kW
  • Temperature range: -25 °C to +85 °C
Unit for cooling crane electronics

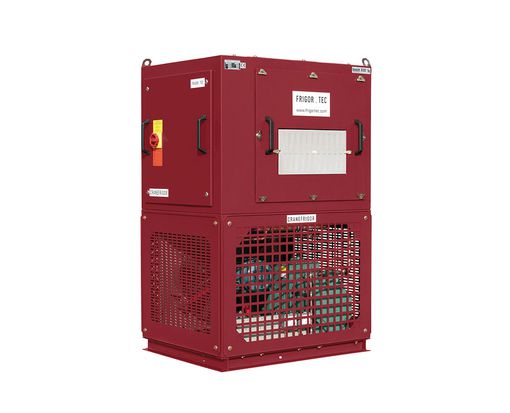

CRANEFRIGOR™TD

Data sheet
  • Installation: Wall, Roof, Remote
  • Nominal cooling capacity: up to 24,5 kW
  • Temperature range: -25 °C to +85 °C
Equipment for crane cabin cooling

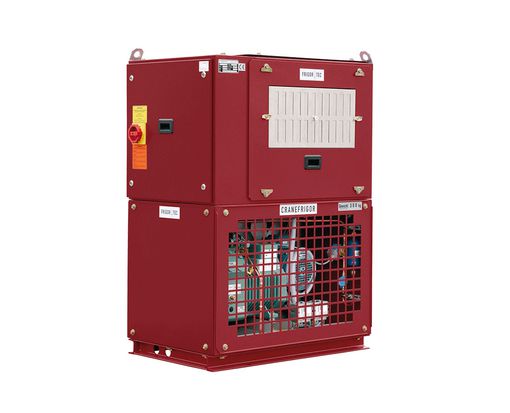

CRANEFRIGOR™TF

Data sheet
  • Installation: Wall, Roof, Remote
  • Nominal cooling capacity: up to 36,5 kW
  • Temperature range: -25 °C to +85 °C
Correctly cooling crane cabins

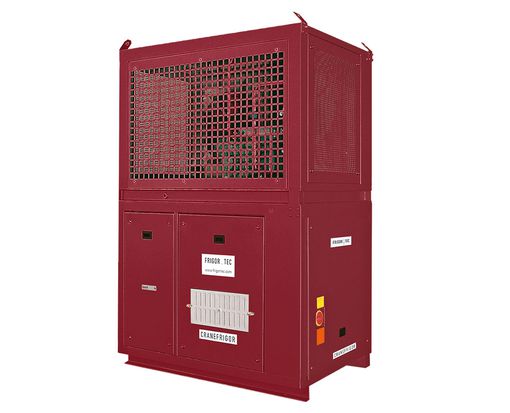

CRANEFRIGOR™TH

Data sheet
  • Installation: Wall, Roof, Remote
  • Nominal cooling capacity: up to 55,5 kW
  • Temperature range: -25 °C to +85 °C
Crane cooling unit for heat plants

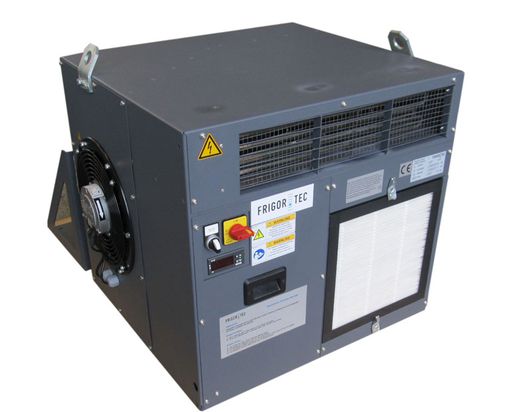

CRANEFRIGOR™OC02

Data sheet
  • Installation: Wall, Roof, Remote
  • Nominal cooling capacity: up to 3,5 kW
  • Temperature range: -25 °C to +60 °C
Cooling, heating, dehumidifying crane cabins

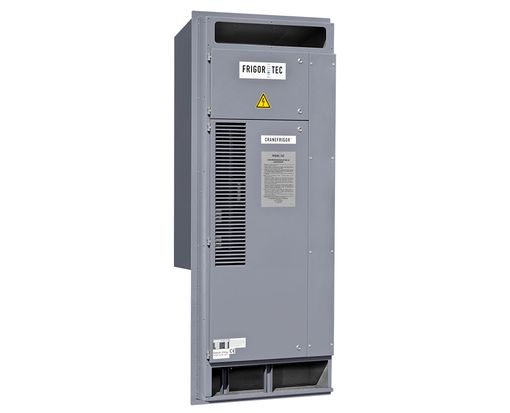

CRANEFRIGOR™OC07

Data sheet
  • Installation: Wall
  • Nominal cooling capacity: up to 6,6 kW
  • Temperature range: -25 °C to +75 °C
Cooling at steel mills, foundries, and hot rolling plants

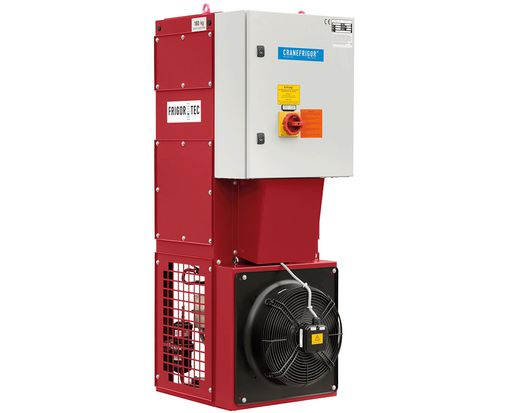

CRANEFRIGOR™TX

Data sheet
  • Installation: Wall, Remote
  • Nominal cooling capacity: up to 6,4 kW
  • Temperature range: -25 °C to +80 °C
Units for crane cooling for harbour facilities

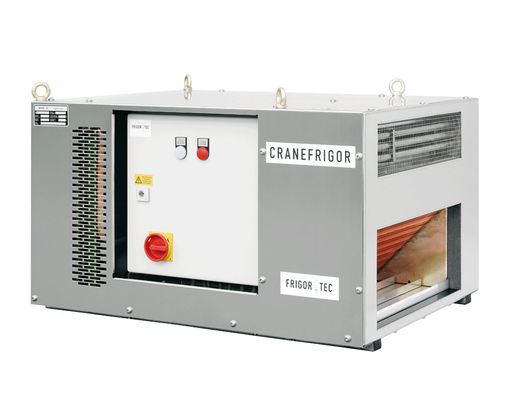

CRANEFRIGOR™TW

Data sheet
  • Installation: Roof, Remote
  • Nominal cooling capacity: up to 4,6 kW
  • Temperature range: -25 °C to +80 °C

CRANEFRIGOR™

For crane air conditioning in heat plants

TB

Cooling crane cabins

TC

Unit for cooling crane electronics

TD

Equipment for crane cabin cooling

TF

Correctly cooling crane cabins

TH

Crane cooling unit for heat plants

OC02

Cooling, heating, dehumidifying crane cabins

OC07

Cooling at steel mills, foundries, and hot rolling plants

TX

Units for crane cooling for harbour facilities

TW

InstallationWall, Roof, RemoteWall, Roof, RemoteWall, Roof, RemoteWall, Roof, RemoteWall, Roof, RemoteWall, Roof, RemoteWallWall, RemoteRoof, Remote
Nominal cooling capacityup to 7,0 kWup to 12,5 kWup to 24,5 kWup to 36,5 kWup to 55.5 kWup to 3,5 kWup to 6.6 kWup to 6,4 kWup to 4,6 kW
Air flow1.200 m³/h2.000 m³/h2.500 m³/h4.800 m³/h7000 m³/h850 m³/h1.000 m³/h1.000 m³/h800 m³/h
Heating capacity3,5 kW2,3 – 4,5 kW3 – 9 kW3 – 9 kW3 – 9 kW2,3 kW6,9 kW4 kW3,5 kW
Weight
Vertical270 kg380 kg628 kg1.140 kg1.360 kg90 kg230 kg180 kg
Horizontal287 kg395 kg660 kg1.260 kg1.475 kg90 kg140 kg
DIMENSION
Vertical600 x 910 x 1.270 mm (L x B x H)660 x 960 x 1.430 mm (L x B x H)930 x 1.160 x 1.900 mm (L x B x H)1.070 x 1.430 x 2.200 mm (L x B x H)1.260 x 1.760 x 2.520 mm (L x B x H)600 x 600 x 600 mm (L x B x H)880 x 460 x 2.140 mm (L x B x H)670 x 530 x 1.600 mm (L x B x H)
Horizontal600 x 1.765 x 640 mm (L x B x H)750 x 1.870 x 720 mm (L x B x H)1.020 x 2.270 x 995 mm (L x B x H)1.160 x 2.790 x 1.180 mm (L x B x H)1.360 x 3.420 x 1.400 (L x B x H)600 x 600 x 600 mm (L x B x H)1.050 x 730 x 630 mm (L x B x H)
CO2-EQUIVALENT
R 134a6.006 kg5.720 kg7.865 kg14.300 kg21.450 kg2.002 kg2.860 kg3.289 kg3.003 kg
R 513A2.650 kg2.524 kg3.471 kg6.310 kg9.465 kg883 kg1.262 kg1.451 kg1.577 kg
R 450A2.541 kg2.118 kg3.328 kg6.050 kg9.075 kg-1.210 kg1.391 kg1.512 kg

Compact devices for air conditioning in crane cabins

Handling and operation

  • Optimal climatic conditions for the operating personnel and the electronics
  • Automatic heating operation
  • Dehumidification operation
  • Optimized air flow
  • Filter media / technology adapted to requirements
  • Easy handling
  • Easy maintenance
  • External monitoring and operation possible
  • Operation in a very wide temperature range
  • Effective device protection through integrated protective devices
  • Reliable operation at widely changing temperatures
  • Reliable operation and adjustment with heavily fluctuating loads
  • Simple and thorough cleaning possible

Energy and environmental balance

  • Use of the most modern and environmentally friendly safety refrigerants
  • Economical solution thanks to low power consumption
  • Energy-efficient design thanks to the latest EC motors
  • Further energy savings through optimal flow and temperature distribution

Workmanship and quality

  • Standard flexibly expandable
  • High quality industrial components
  • Components available worldwide
  • Robust industrial design
  • Corrosion protection through special coatings and choice of materials
  • Multi-level quality control
  • Easy maintenance and service
  • CE-compliant design / further certification possible
  • Long-term availability of spare parts

Options

  • Corrosion protection package adapted to the application and specification

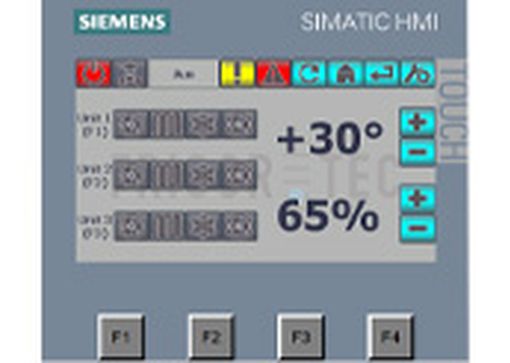

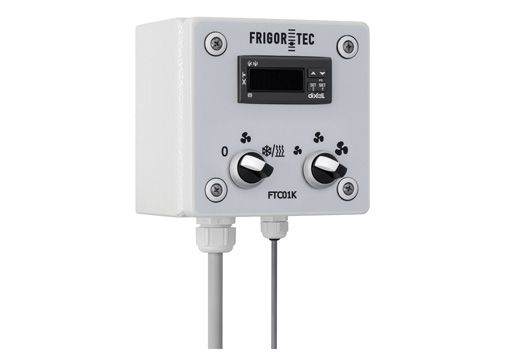

  • FrigorTec Smart Control (FSC) - Redundant systems, comfort control, remote control, remote monitoring and connection to an existing control system

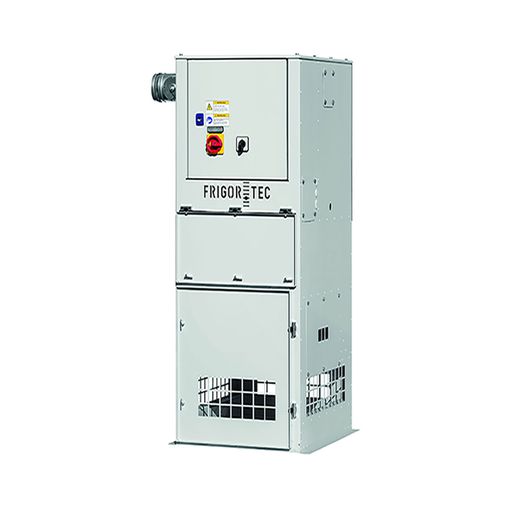

  • Combined system CRANEFRIGOR™ + fresh air supply and filter technology

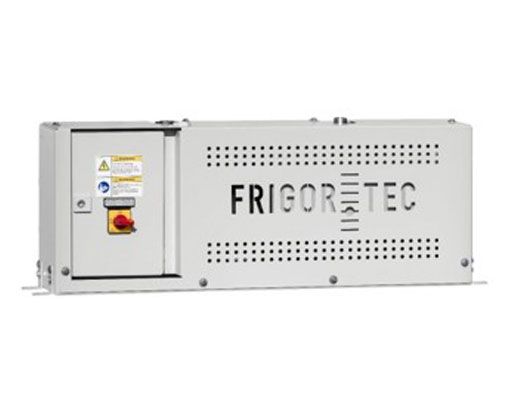

  • Combination system CRANEFRIGOR™ + condensate evaporator

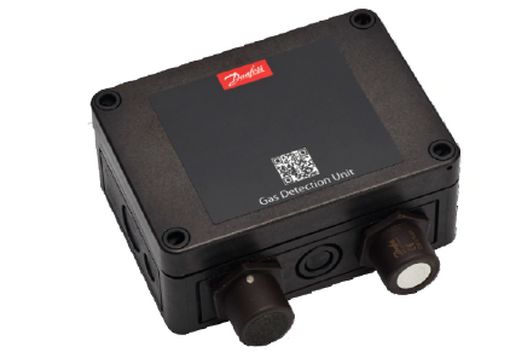

  • Gas warning device
  • Customized version

Know-How

We make no secret of our decades of experience and know-how in the field of crane air conditioning and are happy to share our knowledge with you. Learn about user-relevant facts and background information.

Sobre la importancia de un sistema de climatización para grúas de alto rendimiento

When a crane air conditioning unit is necessary

Crane cooling units for extreme requirements

Functionality and design of crane air conditioning units

Crane cooling units must withstand high temperature applications

Industry specific requirements for crane air conditioning units

The advantages offered by crane cooling

Planning, installation and maintenance of crane air conditioning units

Highlights CRANEFRIGOR

  • Comfort air conditioning of cabin, switch cabinet and electronics room
  • Safe operation under extreme dust exposure
  • Safe operation under extreme heat load
  • Operation 24/7
  • Extremely robust industrial design
  • High corrosion protection in standard version
  • Adjusted air flow and temperature distribution
  • Easy operation
  • Quiet operation
  • Many options available
  • Multi-stage quality control

Related guarantees:

  • Health of the operating staff
  • Increased efficiency of the operating personnel
  • Long service life of electronic components
  • High operational reliability
  • Securing the production process

Product overview

Crane cooling units for container terminals and harbours

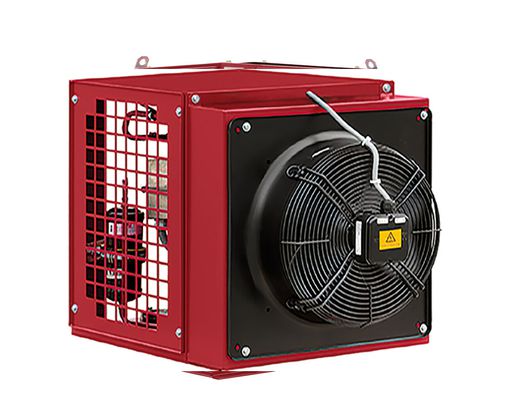

CRANEFRIGOR™VX

Data sheet
  • Installation: Wall, Roof, Remote
  • Nominal cooling capacity: up to 6,4 kW
  • Temperature range: -25 °C to +85 °C
Units for control room cooling and control cabinet cooling

CRANEFRIGOR™VB

Data sheet
  • Installation: Wall, Roof, Remote
  • Nominal cooling capacity: up to 7,0 kW
  • Temperature range: -25 °C to +85 °C
Crane cooling units for protecting the control electronics

CRANEFRIGOR™VC

Data sheet
  • Installation: Wall, Roof, Remote
  • Nominal cooling capacity: up to 12,5 kW
  • Temperature range: -25 °C to +85 °C
Control cabinet and crane cooling

CRANEFRIGOR™VD

Data sheet
  • Installation: Wall, Roof, Remote
  • Nominal cooling capacity: up to 24,5 kW
  • Temperature range: -25 °C to +85 °C
Successfully cooling the control room

CRANEFRIGOR™VF

Data sheet
  • Installation: Wall, Roof, Remote
  • Nominal cooling capacity: up to 36,5 kW
  • Temperature range: -25 °C to +85 °C
Properly cooling the crane cabin

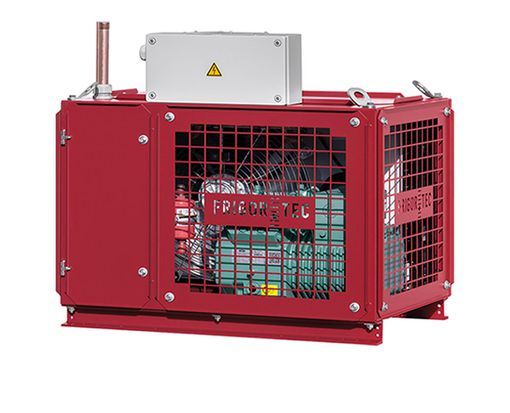

CRANEFRIGOR™VH

Data sheet
  • Installation: Wall, Roof, Remote
  • Nominal cooling capacity: up to 55,5 kW
  • Temperature range: -25 °C to +85 °C

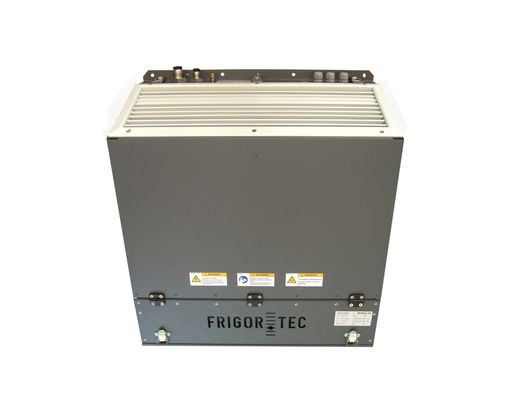

Crane cooling unit for ceiling and wall mounting

CRANEFRIGOR™WDV

Data sheet
  • Installation: Wall, Ceiling
  • Nominal cooling capacity: up to 6,5 kW
  • Temperature range: -25 °C to +30 °C
Crane cooling unit for mounting on the ceiling

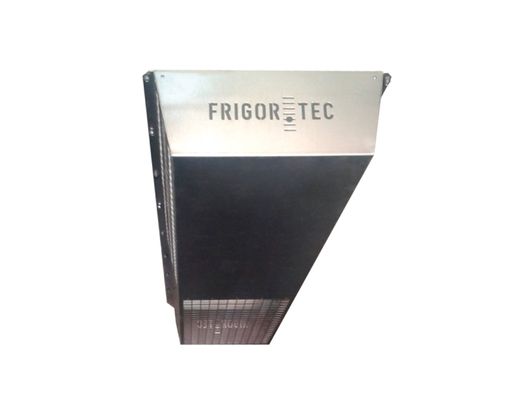

CRANEFRIGOR™DV

Data sheet
  • Installation: Ceiling
  • Nominal cooling capacity: up to 30,0 kW
  • Temperature range: -25 °C to +30 °C

CRANEFRIGOR™

Crane cooling units for container terminals and harbours

VX

Units for control room cooling and control cabinet cooling

VB

Crane cooling units for protecting the control electronics

VC

Control cabinet and crane cooling

VD

Successfully cooling the control room

VF

Properly cooling the crane cabin

VH

Crane cooling unit for ceiling and wall mounting

WDV

Crane cooling unit for mounting on the ceiling

DV

InstallationWall, Roof, RemoteWall, Roof, RemoteWall, Roof, RemoteWall, Roof, RemoteWall, Roof, RemoteWall, Roof, RemoteWall, CeilingCeiling
Nominal cooling capacityup to 6,4 kWup to 7,0 kWup to 12,5 kWup to 24,5 kWup to 36,5 kWup to 55,5 kWup to 6,5 kWup to 30 kW
Air flow750 – 1.400 m³/h1.850 – 6.420 m³/h
Heating capacity3,1 kW6,0 kW
Weight
Vertical78 kg (Evaporator)
Horizontal70 kg (Machine part)150 kg ( Machine part)250 kg (Machine part)400 kg (Machine part)700 kg (Machine partl)950 kg (Machine part)78 kg (Evaporator)35 – 91 kg (Evaporator)
DIMENSION
Vertical670 x 355 x 935 mm (L x B x H) (Evaporator)
Horizontal630 x 530 x 910 mm (L x B x H) (Machine part)600 x 880 x 825 mm (L x B x H) (Machine part)660 x 930 x 905 mm (L x B x H) (Machine part)930 x 1.130 x 1.100 mm (Lx B x H) (Machine part)1.380 x 1.070 x 1.240 mm (L x B x H) ( Machine part)1.680 x 1.260 x 1.440 mm (L x B x H) (Machine part)935 x 670 x 355 mm (L x B x H) (Evaporator)916-2116 x 908 x 270 mm (L x B x H) (Evaporator)
CO2-EQUIVALENT
R 134a6.006 kg7.436 kg15.444 kg34.320 kg45.617 kg94.257 kg--
R 513A2.650 kg3.281 kg6.878 kg15.270 kg20.255 kg41.962 kg--
R 450A2.360 kg2.904 kg6.111 kg13.613 kg18.029 kg37.268 kg--

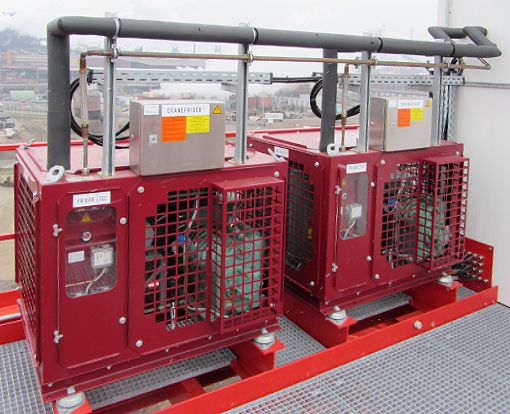

Split devices for air conditioning in crane cabins

Handling and operation

  • Optimal climatic conditions for the operating personnel and the electronics
  • Automatic heating operation
  • Dehumidification operation
  • Optimized air flow
  • Filter media / technology adapted to requirements
  • Easy handling
  • Easy maintenance
  • External monitoring and operation possible
  • Operation in a very wide temperature range
  • Effective device protection through integrated protective devices
  • Reliable operation in strongly changing temperatures
  • Reliable operation and adjustment with heavily fluctuating loads
  • Simple and thorough cleaning possible

Energy and environmental balance

  • Use of the most modern and environmentally friendly safety refrigerants
  • Economical solution thanks to low power consumption
  • Energy-efficient design thanks to the latest EC motors
  • Further energy savings through optimal flow and temperature distribution

Workmanship and quality

  • Standard flexibly expandable
  • High quality industrial components
  • Components available worldwide
  • Robust industrial design
  • Corrosion protection through special coatings and choice of materials
  • Multi-level quality control
  • Easy maintenance and service
  • CE-compliant design / further certification possible
  • Long-term availability of spare parts

Options

  • Corrosion protection package adapted to the application and specification
  • FrigorTec Smart Control (FSC) - Redundant systems, comfort control, remote control, remote monitoring and connection to an existing control system
  • Combined system CRANEFRIGOR™ + fresh air supply and filter technology
  • Combination system CRANEFRIGOR™ + condensate evaporator
  • Gas warning device
  • Customized version

Know-How

We make no secret of our decades of experience and know-how in the field of crane air conditioning and are happy to share our knowledge with you. Learn about user-relevant facts and background information.

Sobre la importancia de un sistema de climatización para grúas de alto rendimiento

When a crane air conditioning unit is necessary

Crane cooling units for extreme requirements

Functionality and design of crane air conditioning units

Crane cooling units must withstand high temperature applications

Industry specific requirements for crane air conditioning units

The advantages offered by crane cooling

Planning, installation and maintenance of crane air conditioning units

Highlights CRANEFRIGOR

  • Comfort air conditioning of cabin, switch cabinet and electronics room
  • Safe operation under extreme dust exposure
  • Safe operation under extreme heat load
  • Operation 24/7
  • Extremely robust industrial design
  • High corrosion protection in standard version
  • Adjusted air flow and temperature distribution
  • Easy operation
  • Quiet operation
  • Many options available
  • Multi-stage quality control

Related guarantees:

  • Health of the operating staff
  • Increased efficiency of the operating personnel
  • Long service life of electronic components
  • High operational reliability
  • Securing the production process

Product overview

This prevents condensation water from dripping down in cranes.

CRANEFRIGOR™KV1

Data sheet
  • Installation: Wall, Outside, Floor
  • Heating capacity: up to 3,6 kW
  • Temperature range: -25 °C to +70 °C
Device for preventing crane shutdowns due to condensation water

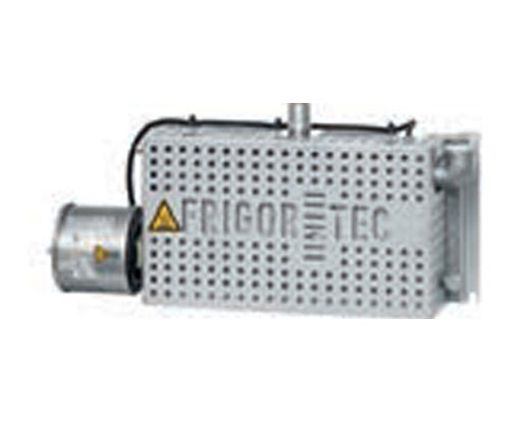

CRANEFRIGOR™KVW

Data sheet
  • Installation: Wall, Outside
  • Heating capacity: up to 3,6 kW
  • Temperature range: -25 °C to +70 °C

CRANEFRIGOR™

This prevents condensation water from dripping down in cranes.

KV1

Device for preventing crane shutdowns due to condensation water

KVW

InstallationWall, Outside, FloorWall, Outside
Heating capacity3,6 kW3,6 kW
Weight
Horizontal25 kg20 kg
DIMENSION
Horizontal550 x 140 x 240 mm (L x B x H)550 x 140 x 240 mm (L x B x H)
CO2-EQUIVALENT

Reliable prevention of dripping condensation water

Product description:

  • Reliable avoidance of dripping condensation water
  • Long service life thanks to the robust industrial design
  • High corrosion resistance due to stainless steel manufacture
  • Closed design to prevent contaminated condensate from dirt particles from the air
  • Prevention of overflow of the condensate container thanks to safety functions and overflow warning
  • High flexibility with connection options for ½ and ¾"
  • Simple assembly thanks to the ready-to-connect structure
  • Easy to maintain due to removable cover
  • Quality control with factory test run
  • Available with its own control (KV1) or control directly via the crane air-conditioning unit in compact design (KVW)

Know-How

We make no secret of our decades of experience and know-how in the field of crane air conditioning and are happy to share our knowledge with you. Learn about user-relevant facts and background information.

Sobre la importancia de un sistema de climatización para grúas de alto rendimiento

When a crane air conditioning unit is necessary

Crane cooling units for extreme requirements

Functionality and design of crane air conditioning units

Crane cooling units must withstand high temperature applications

Industry specific requirements for crane air conditioning units

The advantages offered by crane cooling

Planning, installation and maintenance of crane air conditioning units

Highlights CRANEFRIGOR

  • Comfort air conditioning of cabin, switch cabinet and electronics room
  • Safe operation under extreme dust exposure
  • Safe operation under extreme heat load
  • Operation 24/7
  • Extremely robust industrial design
  • High corrosion protection in standard version
  • Adjusted air flow and temperature distribution
  • Easy operation
  • Quiet operation
  • Many options available
  • Multi-stage quality control

Related guarantees:

  • Health of the operating staff
  • Increased efficiency of the operating personnel
  • Long service life of electronic components
  • High operational reliability
  • Securing the production process

Product overview

Unit for preventing dust and gases from entering into control rooms

CRANEFRIGOR™Filtration System FS10 (self-cleaning)

Data sheet
  • Installation: Outside, Floor
  • Air flow: 0-900 m3/h
Filters particles and gases from the air in control containers

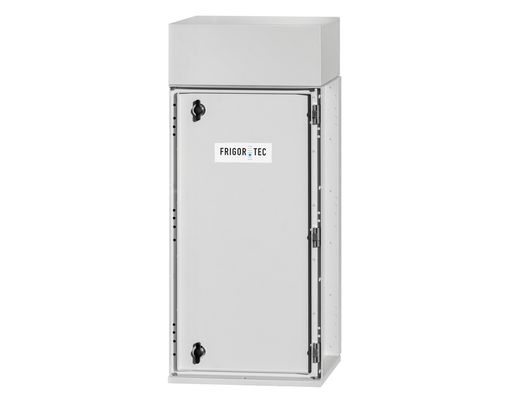

CRANEFRIGOR™Filtration System FT15

Data sheet
  • Installation: Wall, Inside, Outside
  • Air flow: 0-400 m3/h

CRANEFRIGOR™

Unit for preventing dust and gases from entering into control rooms

Filtration System FS10 (self-cleaning)

Filters particles and gases from the air in control containers

Filtration System FT15

InstallationOutside, FloorWall, Inside, Outside
Air flow1.500 m³/h600 m³/h
Weight
Vertical150 kg35 kg
DIMENSION
CO2-EQUIVALENT

Air purification and overpressure control of crane cabins

Options

  • Air quantity can be regulated continuously
  • Stainless steel housing for increased corrosion protection
  • Various special and secondary filters
  • Individual designs with custom voltages, special coatings, etc.

Product description:

  • Optimal fresh air supply for personnel
  • Prevention of dust penetration, chemical gases and particles
  • Effective filtering of dust and other particles from the air
  • Long service life due to robust industrial design
  • Power supply and control via crane air conditioning unit for combined operation of air conditioning unit and filter system
  • Independent operation of the crane air conditioning unit also possible
  • Easy maintenance and cleaning
  • Quality control with factory trial run
  • FT15 version - ideal for small rooms, control cabinet and crane cabin
  • Simultaneous operation of several FT15 systems in larger rooms, e.g., E-rooms
  • FS10 version with integrated cleaning function - ideal for extreme dust loads
  • Significant reduction of maintenance, filter change and cleaning by using FS10
  • Combined use of FT15 and FS10 systems also possible

Know-How

We make no secret of our decades of experience and know-how in the field of crane air conditioning and are happy to share our knowledge with you. Learn about user-relevant facts and background information.

Sobre la importancia de un sistema de climatización para grúas de alto rendimiento

When a crane air conditioning unit is necessary

Crane cooling units for extreme requirements

Functionality and design of crane air conditioning units

Crane cooling units must withstand high temperature applications

Industry specific requirements for crane air conditioning units

The advantages offered by crane cooling

Planning, installation and maintenance of crane air conditioning units

Highlights CRANEFRIGOR

  • Comfort air conditioning of cabin, switch cabinet and electronics room
  • Safe operation under extreme dust exposure
  • Safe operation under extreme heat load
  • Operation 24/7
  • Extremely robust industrial design
  • High corrosion protection in standard version
  • Adjusted air flow and temperature distribution
  • Easy operation
  • Quiet operation
  • Many options available
  • Multi-stage quality control

Related guarantees:

  • Health of the operating staff
  • Increased efficiency of the operating personnel
  • Long service life of electronic components
  • High operational reliability
  • Securing the production process

Product overview

For heating electronics containers and control rooms

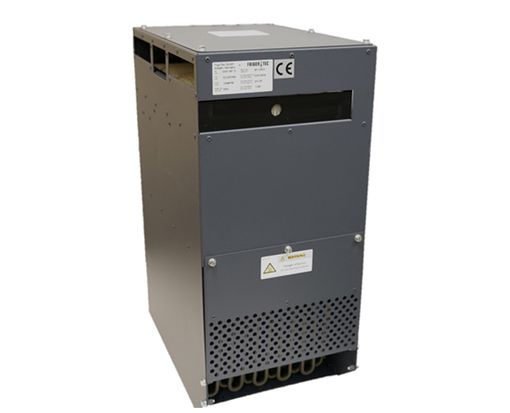

CRANEFRIGOR™Heating device OH07

  • Installation: Inside
  • Heating capacity: up to 7,0 kW
  • Temperature range: -25 °C to +30 °C

CRANEFRIGOR™

For heating electronics containers and control rooms

Heating device OH07

InstallationInside
Air flowup to 1.200 m³/h
Heating capacity7,0 kW
Weight
Vertical35 kg
DIMENSION
Vertical493 x 320 x 706 mm (L x B x H)
CO2-EQUIVALENT

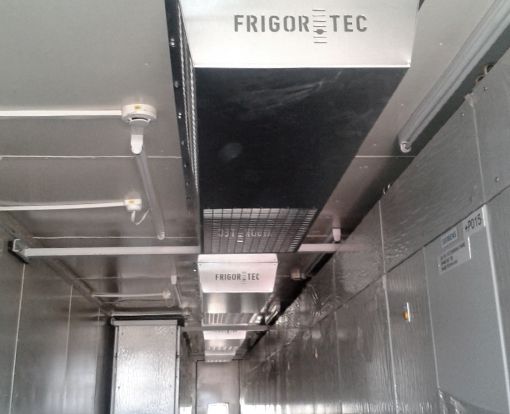

Heating of crane cabins

Product description:

  • Robust industrial design
  • Optimal alignment of air output and fan
  • Integrated air filter
  • Remote installation possibility for controller
  • Individual adaptation to the existing design
  • Non-visible implementation in the interior possible
  • Quiet operation through comfort controller
  • Reduction of heating costs through standby function
  • Integrated remote access

Know-How

We make no secret of our decades of experience and know-how in the field of crane air conditioning and are happy to share our knowledge with you. Learn about user-relevant facts and background information.

Sobre la importancia de un sistema de climatización para grúas de alto rendimiento

When a crane air conditioning unit is necessary

Crane cooling units for extreme requirements

Functionality and design of crane air conditioning units

Crane cooling units must withstand high temperature applications

Industry specific requirements for crane air conditioning units

The advantages offered by crane cooling

Planning, installation and maintenance of crane air conditioning units

Highlights CRANEFRIGOR

  • Comfort air conditioning of cabin, switch cabinet and electronics room
  • Safe operation under extreme dust exposure
  • Safe operation under extreme heat load
  • Operation 24/7
  • Extremely robust industrial design
  • High corrosion protection in standard version
  • Adjusted air flow and temperature distribution
  • Easy operation
  • Quiet operation
  • Many options available
  • Multi-stage quality control

Related guarantees:

  • Health of the operating staff
  • Increased efficiency of the operating personnel
  • Long service life of electronic components
  • High operational reliability
  • Securing the production process

Aldo discover

Warning for dangerous gas concentrations in cranes

Gas warning device

  • Installation: wall (inside)
  • Room monitoring
Data sheet
Crane air-conditioning unit controller for wall mounting

FrigorTec Controller (FTC)

  • Installation: wall (inside)
  • Control / Thermostat
Data sheet
Siemens controller for operating the crane cooling units

FrigorTec Smart Control (FSC)

  • Installation: wall (inside)
  • Superordinate control
Data sheet

Arrange a consultation appointment

Our experts will be happy to advise you on the planning and implementation of your projects. Together we will find a perfect customised solution.

Arrange an appointment
Contact
