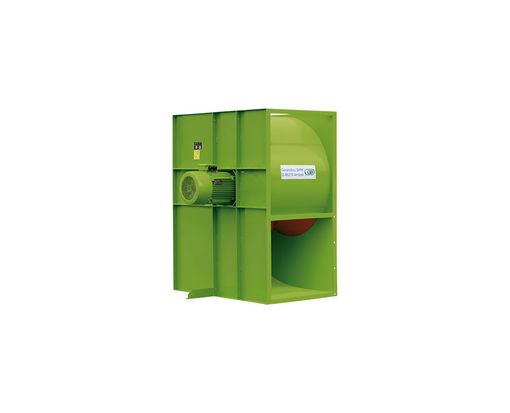

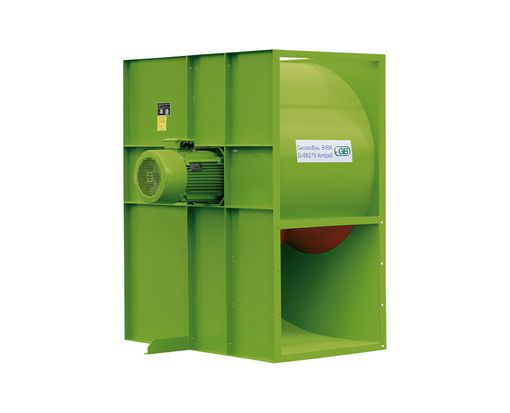

AGRIFRIGOR™ Ventilators

In order to introduce an appropriate pressure, a centrifugal fan is imperative. If a fan is equipped with a frequency control, the system can be optimally regulated.

High-performance radial fan for the best hay quality

Product overview

Drying hay with a radial fan

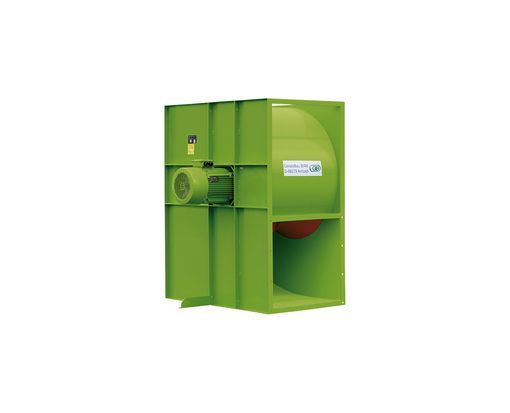

AGRIFRIGOR™AV 5.5

  • Air volume (m³/s): 7,0
  • Pressure (Pa)*: 1.200
Fans for machine hay drying

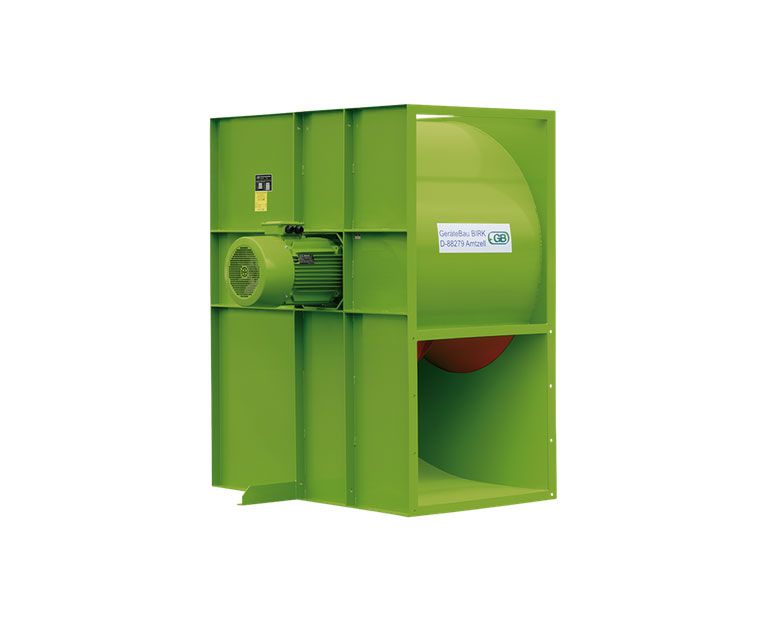

AGRIFRIGOR™AV 7.5

  • Air volume (m³/s): 7,5
  • Pressure (Pa)*: 1.800
Drying hay properly with fans

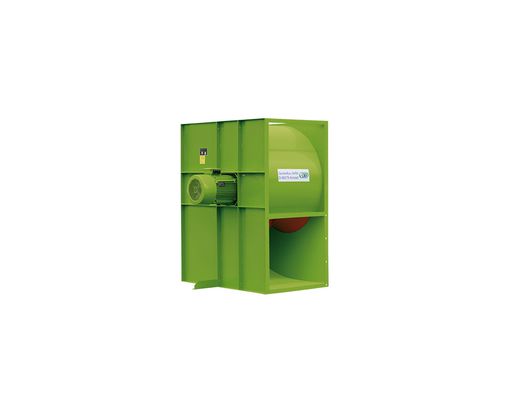

AGRIFRIGOR™AV 9

  • Air volume (m³/s): 9,0
  • Pressure (Pa)*: 1.850

Hay fan as part of the hay-drying system

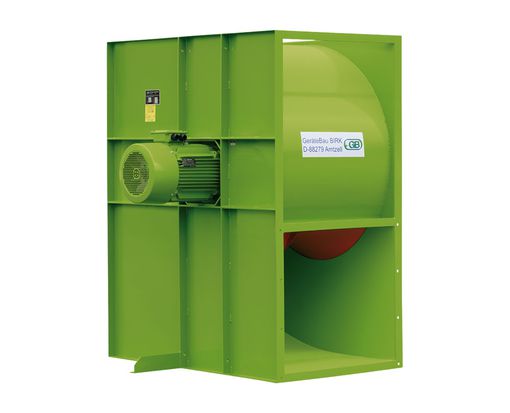

AGRIFRIGOR™AV 11

  • Air volume (m³/s): 9,0
  • Pressure (Pa)*: 2.300
Ventilating hay for the best possible drying

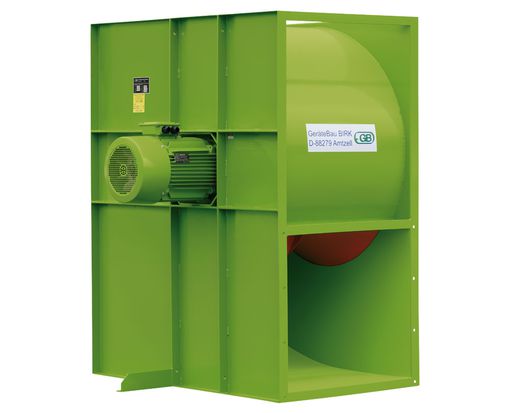

AGRIFRIGOR™AV 15

  • Air volume (m³/s): 13,1
  • Pressure (Pa)*: 1.800
Drying hay with fan power

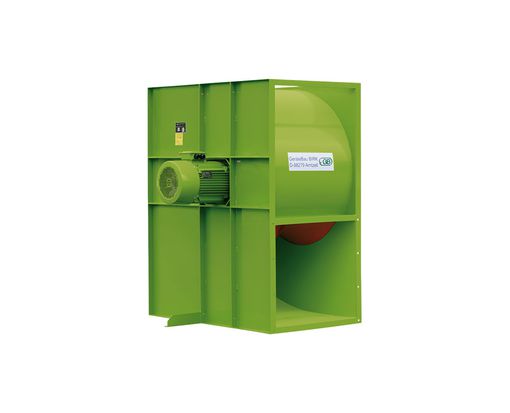

AGRIFRIGOR™AV 18.5

  • Air volume (m³/s): 16,8
  • Pressure (Pa)*: 2.100
Using a radial fan for machine drying

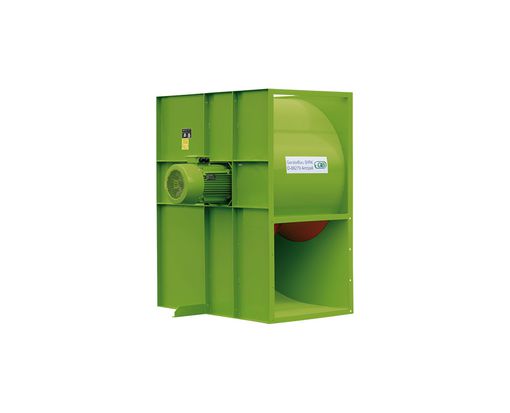

AGRIFRIGOR™AV 22

  • Air volume (m³/s): 18,1
  • Pressure (Pa)*: 2.300
Drying hay and hops using fans

AGRIFRIGOR™AV 30

  • Air volume (m³/s): 20,1
  • Pressure (Pa)*: 2.800
Drying alfalfa and hay with a radial fan

AGRIFRIGOR™AV 45

  • Air volume (m³/s): 28
  • Pressure (Pa)*: 1.600
Effective hay drying with fans

AGRIFRIGOR™AV 55

  • Air volume (m³/s): 37,5
  • Pressure (Pa)*: 1.950

AGRIFRIGOR™

Drying hay with a radial fan

AV 5.5

Fans for machine hay drying

AV 7.5

Drying hay properly with fans

AV 9

Hay fan as part of the hay-drying system

AV 11

Ventilating hay for the best possible drying

AV 15

Drying hay with fan power

AV 18.5

Using a radial fan for machine drying

AV 22

Drying hay and hops using fans

AV 30

Drying alfalfa and hay with a radial fan

AV 45

Effective hay drying with fans

AV 55

Air volume7.0 m³/s7.5 m³/s9.0 m³/s9.0 m³/s13.1 m³/s17.0 m³/s18.5 m³/s20.5 m³/s25.0 m³/s36.0 m³/s
Pressure1.390 Pa1.950 Pa1.850 Pa2.300 Pa2.350 Pa2.100 Pa2.300 Pa2.840 Pa2.400 Pa1.950 Pa
ELECTRICAL DATA
Max. current consumption11 A14 A17 A21 A27 A36 A45 A55 A78 A95 A
Electrical connection5.5/16 kW/A7.5/16 kW/A9.0/32 kW/A11/32 kW/A15/32 kW/A18.5/50 kW/A22/50 kW/A30/63 kW/A45/100 kW/A55/100 kW/A
Dimensions1.100 x 1.030 x 1.420 mm (L x W x H)1.100 x 1.030 x 1.420 mm (L x W x H)1.250 x 1.080 x 1.570 mm (L x W x H)1.250 x 1.080 x 1.570 mm (L x W x H)1.570 x 1.210 x 1.910 mm (L x W x H)1.670 x 1.550 x 2.060 mm (L x W x H)1.670 x 1.600 x 2.570 mm (L x W x H)1.670 x 1.600 x 2.570 mm (L x W x H)1.750 x 1.900 x 2.330 mm (L x W x H)1.750 x 1.920 x 2.190 mm (L x W x H)
Weight220 kg220 kg260 kg270 kg450 kg650 kg650 kg700 kg800 kg1.000 kg

Product description

Handling and operation

  • Robust industrial construction provides long service live
  • Extremely powerful thanks to pressure stability
  • Optimal air speed for outstanding impact and air flow
  • Energy-efficient operation with frequency control
  • Prevention of air loss – especially important for low charging heights
  • Runs quietly thanks to a soundproofed construction
  • Quality inspection with trial run at factory

* Higher pressures possible on request

Know-How

Since 1963 we produce customised solutions for agricultural engineering and we have acquired extensive expertise in all aspects of all topics. We are glad to share our expertise with you.

Hay drying for better planning reliability and quality assurance

Technical hay drying and its advantages

Correct design of hay boxes for machine hay drying

Designed to meet requirements as the basis for economical hay drying

Hay drying and haymaking

Quality in quantity – professional hay and plant drying

Hay drying guaranteeing good hay quality

How hay quality affects animal health

Highlights AGRIFRIGOR

  • Efficient thanks to heat recovery
  • Fully automatic SPS control
  • Dehumidifier for more power
  • Powerful fans
  • Long service life, quiet operatio
  • Utmost individuality by the modular system
  • Advance in knowledge thanks to close contacts to institutes, universities and the dialogue with our customers
  • Innovational strength by modern, forward thinking product solutions
Our planning support - experts in agricultural engineering for over 60 years
  • Dimensioning of your drying system
  • Arrangement of boxes, air ducts, technology
  • Design of the roof extraction system
  • Coordination with your architect and hall constructor
  • Comprehensive documentation as free assistance
  • Aldo discover

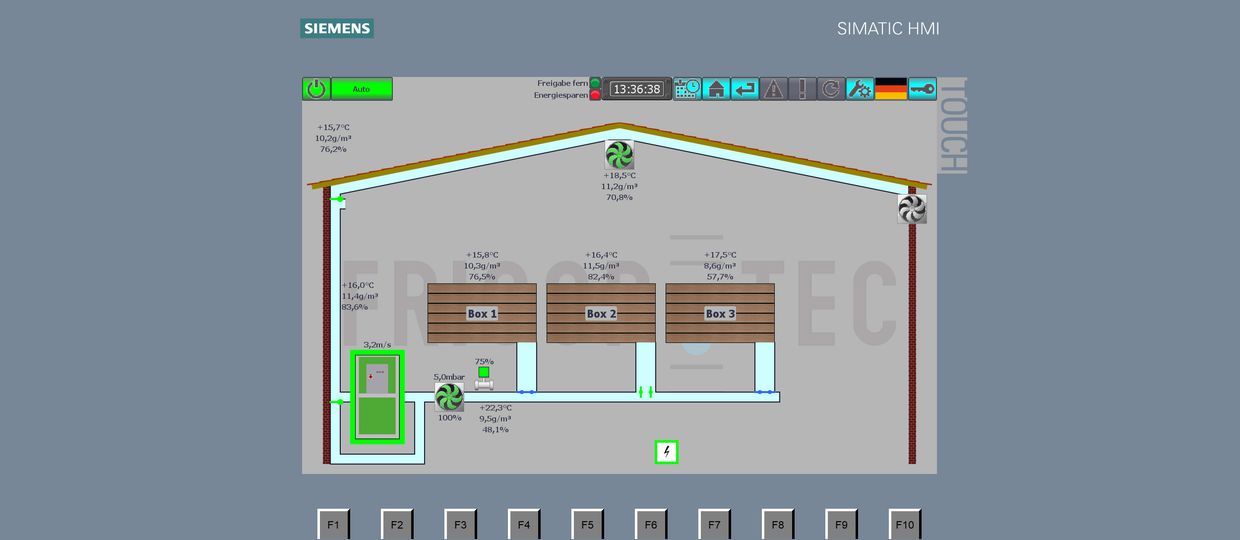

    Simple operation via Siemens control for hay dryers

    AGRICONTROL Siemens S7

    • Individual control of all switching operations
    • Screen display of the plant status
    • Ideal when employing several drying boxes
    • Remote data transmission possible via modem
