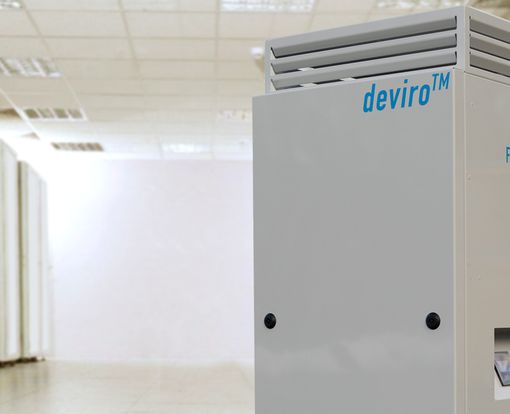

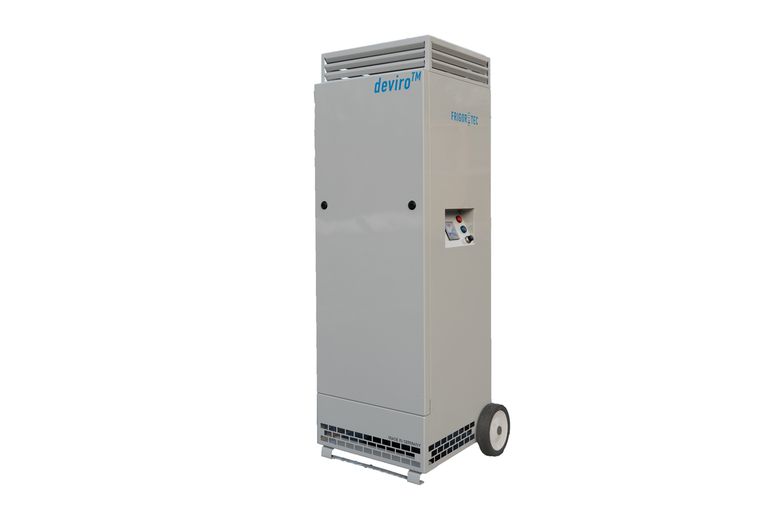

STANDARDFRIGOR Air purifier deviro™
The deviro™ cleans room air of fine dust, viruses and other elements that are harmful to health using a three-phase filtration system. The downstream HEPA H14 filter removes 99.995% of impurities from the air. Despite its powerful fan, the deviro™ is one of the quietest filtration devices in its class and can therefore also be used in work rooms.
Fields of application
- Areas with a high turnover of people, such as supermarkets, fitness studios and restaurants
- Noise-sensitive environments such as work rooms, control stands, offices, meeting rooms, technology control centres and medical practices
- Industrial applications such as production areas and electronics rooms with personnel
Product overview

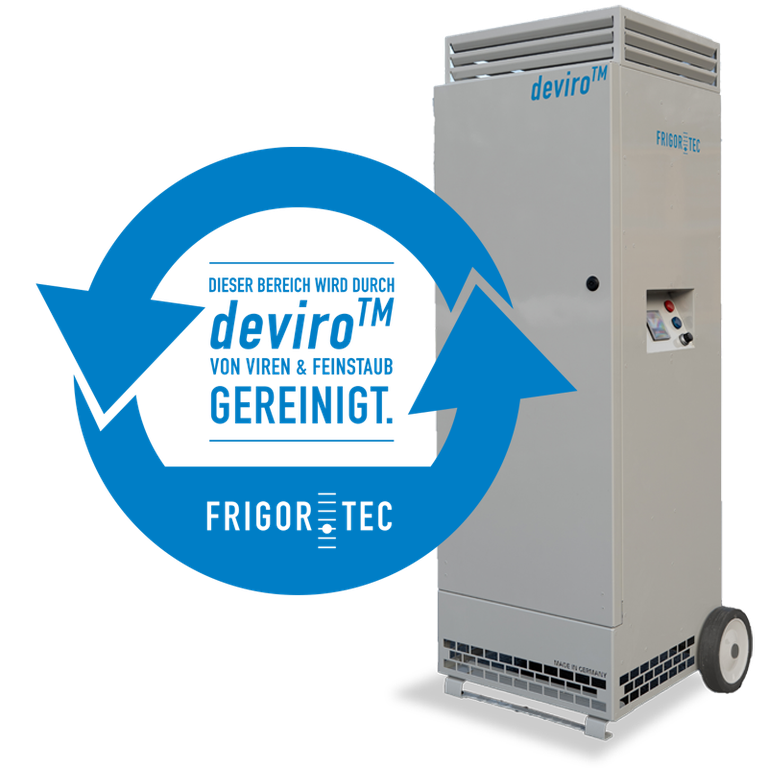

STANDARDFRIGORdeviro™ AF650
- Three filter stages remove 99.995% of air impurities
- Sound insulation enables use in noise sensitive surroundings
- Simplified transport with handles and fixed castors
- Every deviro™ is produced at our German plant and undergoes a factory test run before delivery
- Easy operation, timer can be selected with app
- Optional UVC technology for additional safety
STANDARDFRIGOR | deviro™ AF650 |
|---|---|
| Max. air flow volume | 615 m3/h |
| Max. recommended room size | |
| Air exchange rate 2/h | 308 m3 |
| Air exchange rate 4/h | 153 m3 |
| Air exchange rate 6/h (required for coronavirus protection) | 102 m3 |
| Filter | |
| Filter stage 1 | M5 (60% degree of separation 1)) |
| Filter stage 2 | F9 (99% degree of separation 1)) |
| Filter stage 3 | H14 (99.995% degree of separation 2)) |
| ELECTRICAL DATA | |
| Mains connection | 230 V/50 Hz |
| Power consumptio | 200 W |
| Nominal current consumption | 1,8 A |
| Recommended fuse | 4,0 A |
| Connection plug | CEE 7/7, H07RN-F |
| Length of mains cable | 5 m |
| Noise emissions (with new filters) | 52 ± 3 dB(A) in 1 m |
| Dimensions | 600 x 650 x 1.600 mm |
| Weight | 90 kg |
| Colour | RAL 7035 (light grey) |
Technical features
- Coarse dust filter
- Fine dust filter
- HEPA H14 suspended matter filter
- Reverse-bent EC radial fan in the spiral housing, single-sided suction
- Constant volume flow control
- Differential pressure-controlled filter change display for pre-filter stages
- Freely programmable weekly timer switch (10-year power reserve)
- Operating mode switch
- Operating and warning signal lights
- Cold device socket with fuse
- Mains connection with mains switch
- Powder-coated steel housing
Sound insulation
- Housing sound insulation
- Fan with floating support for acoustic decoupling
- Labyrinth sound absorber on suction side, screen muffler on pressure side
Equipment
- Transport handle
- Fixed castors
- Foot
- Diffusor cover (easy to remove)
Wear/replacement parts
- Coarse dust filter (replacement interval every 12 months)
- Fine dust filter (replacement interval every 12 months)
- HEPA H14 suspended matter filter (replacement interval every 2 years)
Know-How
Powerful, thorough, quiet: How do air purifiers work?
Why winter is favourable to coronavirus and weakens the immune system
Correctly positioned air purifiers complement regular airing
Why room air hygiene should also be given priority after Corona

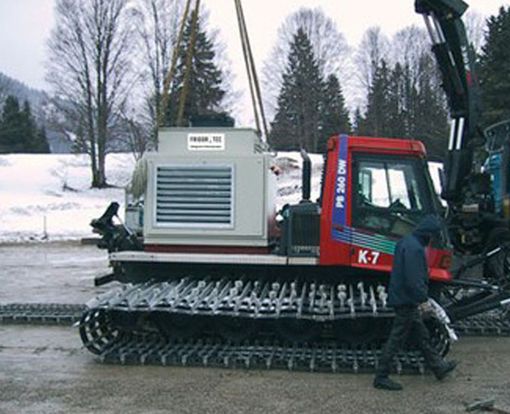

Reduce the need for artificial snowmaking with snow cooling units

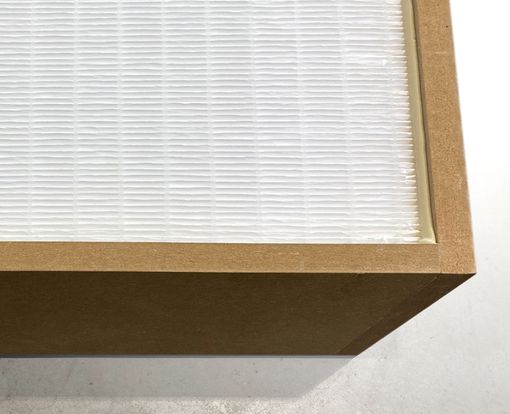

HEPA Filters: Using physical tricks to capture particles
How air purifiers can contribute to improving health protection
Requirements for water-cooled chillers for use in heavy industry

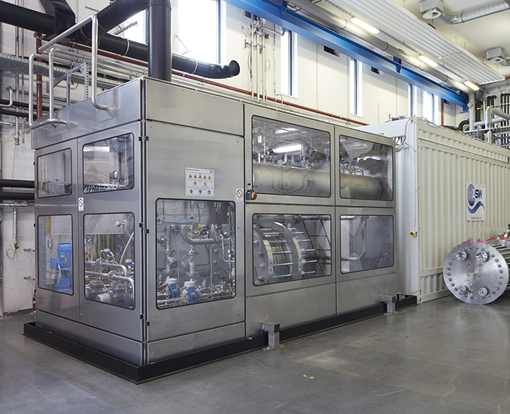

Electrolysers – the climate-neutral technology of the future
