CRANEFRIGOR™ Control cabinets

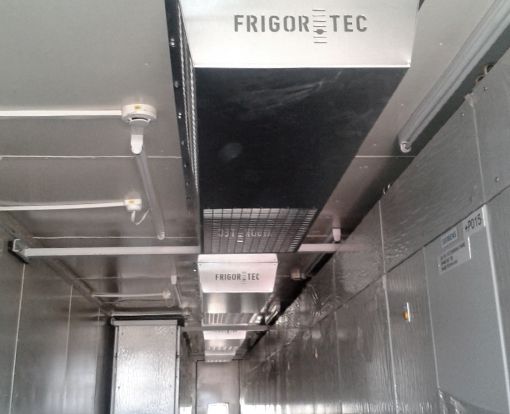

Our compact CRANEFRIGOR control cabinet air conditioners have been developed for the cooling, heating and dehumidification of control cabinets or control cabinet rows. In addition to the optimal protection of the electronics, they impress with their robustness and many optionally available accessory components.
Fields of application

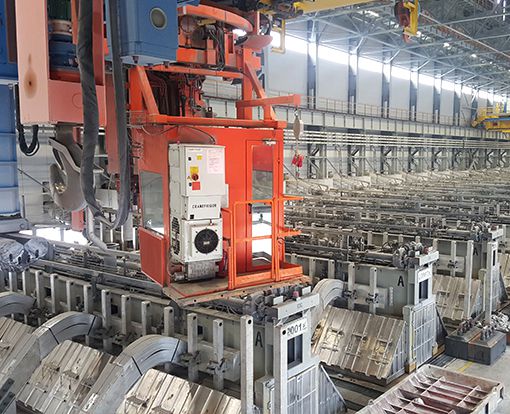

- Designed for extreme conditions: shock loads, thermal radiation, dust and corrosion
- Flexible use thanks to numerous mounting options

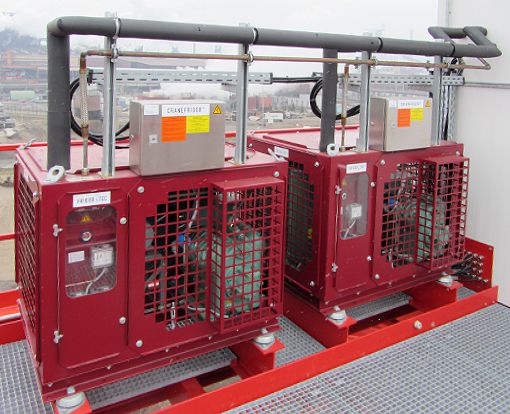

- Proven worldwide in various industries
Product overview

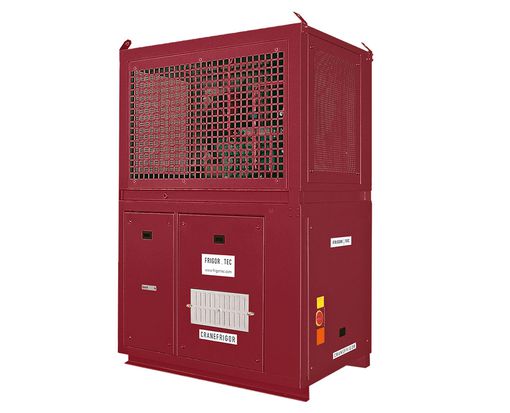

CRANEFRIGOR™TB
- Installation: Wall, Roof, Remote
- Nominal cooling capacity: up to 24,000 btu/h
- Temperature range: -13 °F to +185 °F

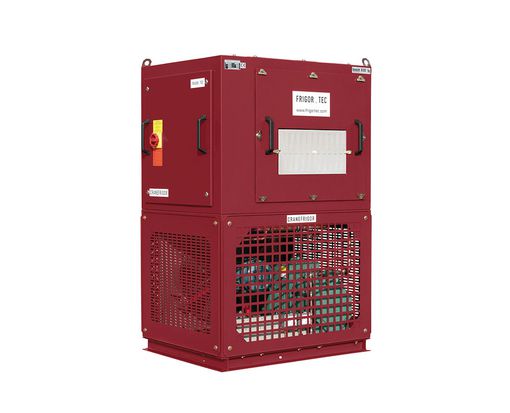

CRANEFRIGOR™TC
- Installation: Wall, Roof, Remote
- Nominal cooling capacity: up to 42,000 btu/h
- Temperature range: -13 °F to +185 °F

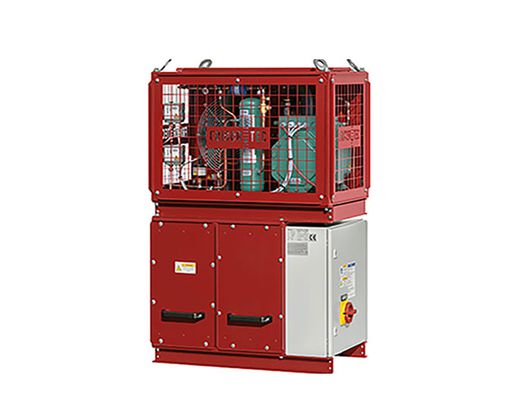

CRANEFRIGOR™TD
- Installation: Wall, Roof, Remote
- Nominal cooling capacity: up to 84,000 btu/h
- Temperature range: -13 °F to +185 °F
CRANEFRIGOR™TF
- Installation: Wall, Roof, Remote
- Nominal cooling capacity: up to 120,000 btu/h
- Temperature range: -13 °F to +185 °F
CRANEFRIGOR™TH
- Installation: Wall, Roof, Remote
- Nominal cooling capacity: up to 180,000 btu/h
- Temperature range: -13 °F to +185 °F

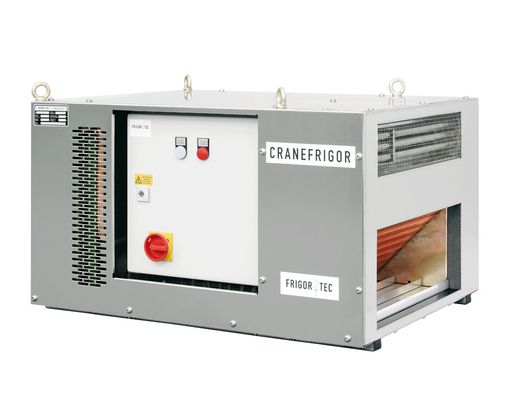

CRANEFRIGOR™TW
- Installation: Roof, Remote
- Nominal cooling capacity: up to 16,000 btu/h
- Temperature range: -13 °F to +175 °F

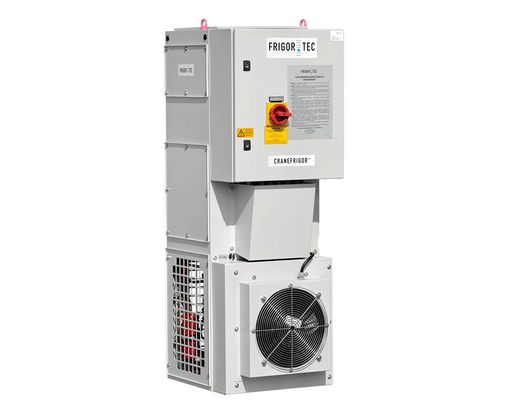

CRANEFRIGOR™TY
- Installation: Wall, Remote
- Nominal cooling capacity: up to 22,000 btu/h
- Temperature range: -13 °F to 175 °F

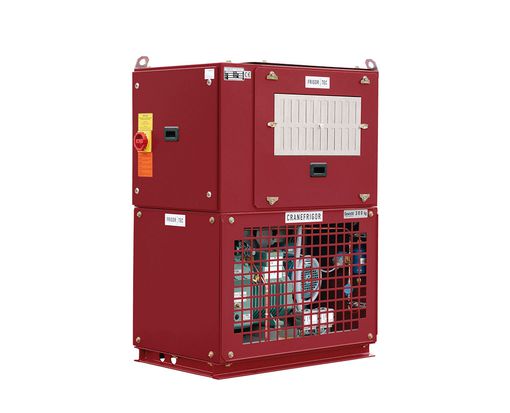

CRANEFRIGOR™CK12.v
- Installation: Wall, Remote
- Nominal cooling capacity: up to 42,000 btu/h
- Temperature range: -13 °F to +185 °F

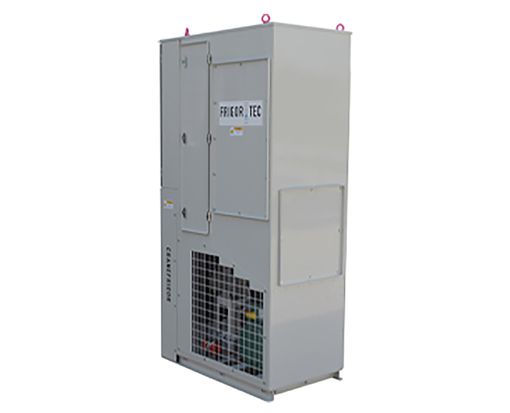

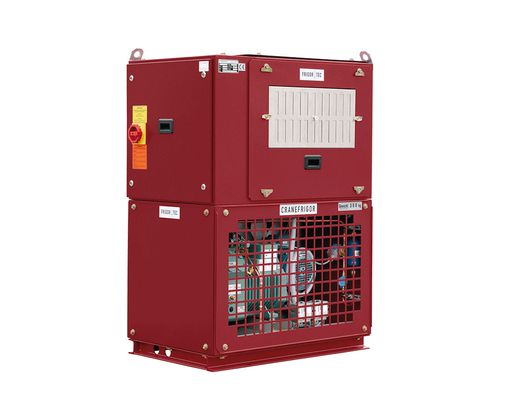

CRANEFRIGOR™CK18.v
- Installation: Wall, Remote
- Nominal cooling capacity: up to 66,000 btu/h
- Temperature range: -13 °F to +185 °F
CRANEFRIGOR™CK24.v
- Installation: Wall, Remote
- Nominal cooling capacity: up to 83,000 btu/h
- Temperature range: -13 °F to +185 °F

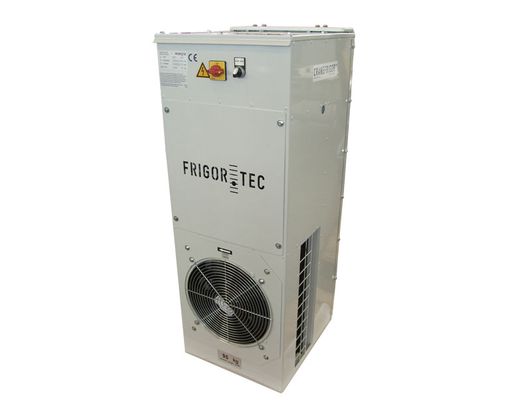

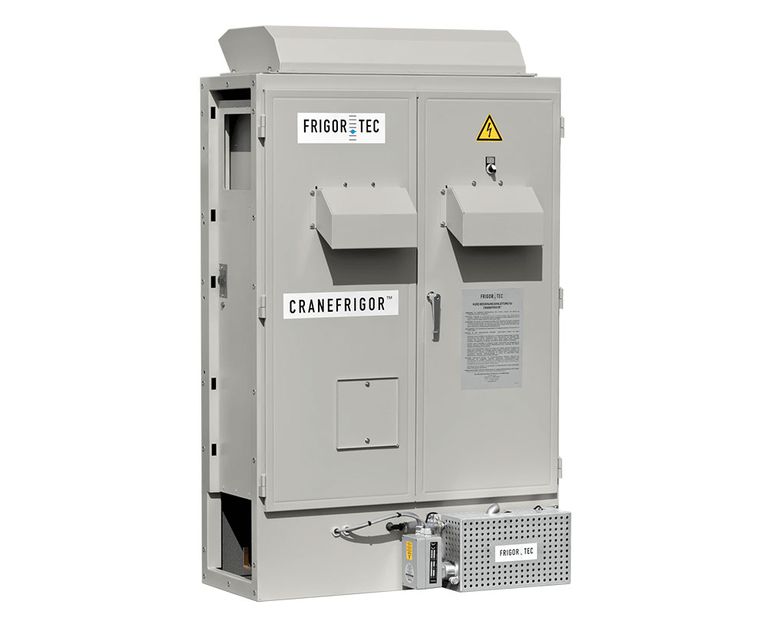

CRANEFRIGOR™CC02
- Installation: Wall, Remote
- Nominal cooling capacity: up to 12,000 btu/h
- Temperature range: -13 °F to +158 °F

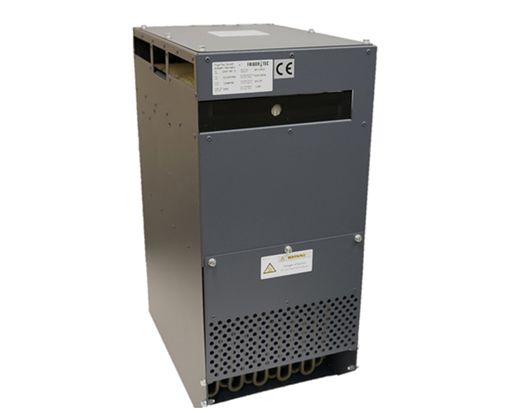

CRANEFRIGOR™CC05
- Installation: Installation / OEM product
- Nominal cooling capacity: up to 20,000 btu/h
- Temperature range: -13 °F to +158 °F
CRANEFRIGOR™CC08
- Installation: Installation / OEM product
- Nominal cooling capacity: up to 40,000 btu/h
- Temperature range: -13 °F to +158 °F
CRANEFRIGOR™ | TB | TC | TD | TF | TH | TW | TY | CK12.v | CK18.v | CK24.v | CC02 | CC05 | CC08 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Installation | Wall, Roof, Remote | Wall, Roof, Remote | Wall, Roof, Remote | Wall, Roof, Remote | Wall, Roof, Remote | Roof, Remote | Wall, Remote | Wall, Remote | Wall, Remote | Wall, Remote | Wall, Remote | Installation / OEM product | Installation / OEM product |
| Nominal cooling capacity | up to 24,000 btu/h | up to 42,000 btu/h | up to 84,000 btu/h | up to 120,000 btu/h | up to 180,000 btu/h | up to 16,000 btu/h | up to 22,000 btu/h | up to 42,000 btu/h | up to 66,000 btu/h | up to 83,000 btu/h | up to 12,000 btu/h | up to 20,000 btu/h | up to 40,000 btu/h |
| Air flow | 706 cfm | 1,177 cfm | 1,471 cfm | 2,826 cfm | 4,120 cfm | 471 cfm | 589 cfm | 1,471 cfm | 2,060 cfm | 2,354 cfm | 882 cfm | 706 cfm | 1,177 cfm |
| Heating capacity | 11,945 btu/h | 7,850 – 15,355 btu/h | 10,240 – 30,710 btu/h | 10,240 – 30,710 btu/h | 10,240 – 30,710 btu/h | 11,950 btu/h | 13,650 btu/h | 23,550 btu/h | 23,550 btu/h | 623,550 btu/h | – | 7,850 btu/h | 17,060 btu/h |
| Weight | |||||||||||||
| Vertical | 595 lb | 838 lb | 1,385 lb | 2,513 lb | 2,998 lb | – | 397 lb | 904 lb | 1,058 lb | 1,124 lb | 198 lb | 617 lb | 992 lb |
| Horizontal | 633 lb | 871 lb | 1,455 lb | 2,778 lb | 3,252 lb | 309 lb | – | – | – | – | – | - | - |
| DIMENSION | |||||||||||||
| Vertical | 23.6 x 35.8 x 50.0 in (L x W x H) | 26.0 x 38.0 x 56.0 in (L x W x H) | 36.6 x 45.7 x 74.8 in (L x W x H) | 42.1 x 56.3 x 86.6 in (L x W x H) | 49.6 x 69.3 x 99.2 in (L x W x H) | – | 26.5 x 20.9 x 63.0 in (L x W x H) | 41.3 x 25.1 x 72.6 in(L x W x H) | 45.2 x 33.0 x 76.6 in (L x W x H) | 45.2 x 33.0 x 76.6 in (L x W x H) | 16.3 x 22.0 x 44.4 in (L x W x H) | 24.0 x 39.3 x 64.6 in (L x W x H) | 39.3 x 30.1 x 86.6 in (L x W x H) |
| Horizontal | 26.8 x 69.5 x 25.2 in (L x W x H) | 29.5 x 73.6 x 28.4 in (L x W x H) | 40.2 x 89.4 x 39.2 in (L x W x H) | 45.7 x 109.8 x 46.5 in (L x W x H) | 53.5 x 134.7 x 55.1 in (L x W x H) | 41.4 x 28.7 x 24.8 in (L x W x H) | – | – | – | – | – | - | - |
| CO2-EQUIVALENT | |||||||||||||
| R 134a | 13,241 lb | 12,160 lb | 17,339 lb | 31,526 lb | 47,289 lb | 6,621 lb | 7,251 lb | 25,221 lb | 29,950 lb | 40,984 lb | 4,414 lb | 6,936 lb | 12,610 lb |
| R 513A | 5,842 lb | 5,565 lb | 7,652 lb | 13,911 lb | 20,867 lb | 3,477 lb | 3,199 lb | 11,129 lb | 13,215 lb | 18,085 lb | 1,947 lb | 3,060 lb | 5,565 lb |
| R 450A | 5,602 lb | 4,660 lb | 7,337 lb | 13,338 lb | 20,007 lb | 3,333 lb | 3,067 lb | 10,670 lb | 12,670 lb | 17,339 lb | – | 2,934 lb | 5,335 lb |
Compact devices for the air conditioning of control cabinets
Handling and operation
- Optimal climatic conditions for the operating personnel and the electronics
- Automatic heating operation
- Dehumidification operation
- Optimized air flow
- Filter media / technology adapted to requirements
- Easy handling
- Easy maintenance
- External monitoring and operation possible
- Operation in a very wide temperature range
- Effective device protection through integrated protective devices
- Reliable operation at widely changing temperatures
- Reliable operation and adjustment with heavily fluctuating loads
- Simple and thorough cleaning possible
Energy and environmental balance
- Use of the most modern and environmentally friendly safety refrigerants
- Economical solution thanks to low power consumption
- Energy-efficient design thanks to the latest EC motors
- Further energy savings through optimal flow and temperature distribution
Workmanship and quality
- Standard flexibly expandable
- High quality industrial components
- Components available worldwide
- Robust industrial design
- Corrosion protection through special coatings and choice of materials
- Multi-level quality control
- Easy maintenance and service
- CE-compliant design / further certification possible
- Long-term availability of spare parts
Options
- Corrosion protection package adapted to the application and specification

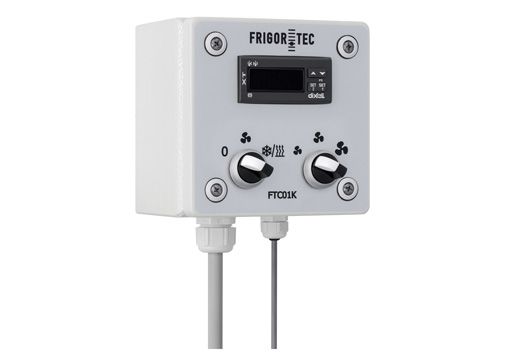

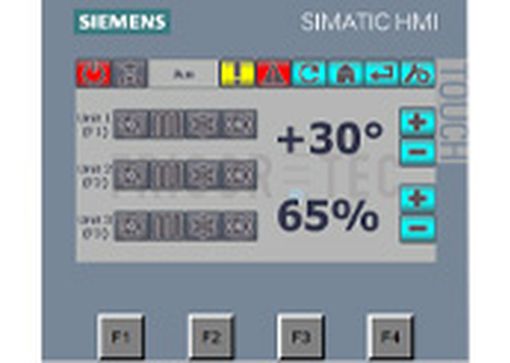

- FrigorTec Smart Control (FSC) - Redundant systems, comfort control, remote control, remote monitoring and connection to an existing control system
- Combined system CRANEFRIGOR™ + fresh air supply and filter technology
- Combination system CRANEFRIGOR™ + condensate evaporator

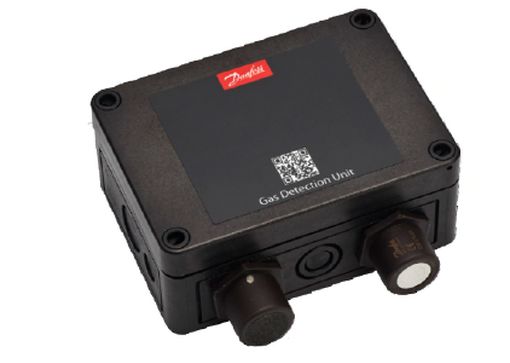

- Gas warning device
- Customized version
Know-How
We make no secret of our decades of experience and know-how in the field of crane air conditioning and are happy to share our knowledge with you. Learn about user-relevant facts and background information.
When a crane air conditioning unit is necessary
Functionality and design of crane air conditioning units
Industry specific requirements for crane air conditioning units
Planning, installation and maintenance of crane air conditioning units
Highlights CRANEFRIGOR
- Comfort air conditioning of cabin, switch cabinet and electronics room
- Safe operation under extreme dust exposure
- Safe operation under extreme heat load
- Operation 24/7
- Extremely robust industrial design
- High corrosion protection in standard version
- Adjusted air flow and temperature distribution
- Easy operation
- Quiet operation
- Many options available
- Multi-stage quality control
Related guarantees:
- Health of the operating staff
- Increased efficiency of the operating personnel
- Long service life of electronic components
- High operational reliability
- Securing the production process
Product overview

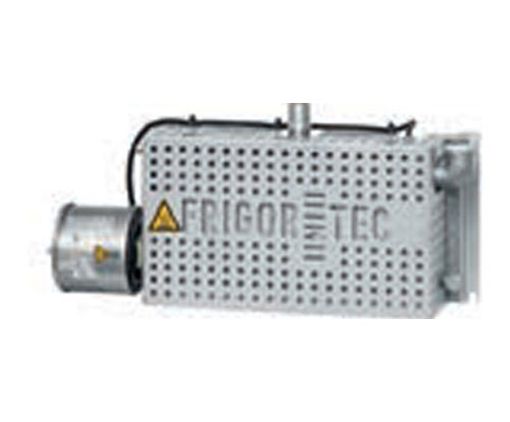

CRANEFRIGOR™KV
- Installation: Wall, Outside, Floor
- Heating capacity: up to 11,950 btu/h
- Temperature range: -13°F to +160 °F
CRANEFRIGOR™KVW
- Installation: Wall, Outside
- Heating capacity: up to 11,950 btu/h
- Temperature range: -13 °F to +160 °F
CRANEFRIGOR™ | KV | KVW |
|---|---|---|
| Installation | Wall, Outside, Floor | Wall, Outside |
| Heating capacity | 11,950 btu/h | up to 11,950 btu/h |
| Weight | ||
| Horizontal | 65 lb | 44 lb |
| DIMENSION | ||
| Horizontal | 41.8 x 7.7 x 13.7 in (L x W x H) | 23.8 x 6.0 x 8.5 in (L x W x H) |
| CO2-EQUIVALENT | ||
Reliable prevention of dripping condensation water
Product description:
- Reliable avoidance of dripping condensation water
- Long service life thanks to the robust industrial design
- High corrosion resistance due to stainless steel manufacture
- Closed design to prevent contaminated condensate from dirt particles from the air
- Prevention of overflow of the condensate container thanks to safety functions and overflow warning
- High flexibility with connection options for ½ and ¾"
- Simple assembly thanks to the ready-to-connect structure
- Easy to maintain due to removable cover
- Quality control with factory test run
- Available with its own control (KV1) or control directly via the crane air-conditioning unit in compact design (KVW)
Know-How
We make no secret of our decades of experience and know-how in the field of crane air conditioning and are happy to share our knowledge with you. Learn about user-relevant facts and background information.
When a crane air conditioning unit is necessary
Functionality and design of crane air conditioning units
Industry specific requirements for crane air conditioning units
Planning, installation and maintenance of crane air conditioning units
Highlights CRANEFRIGOR
- Comfort air conditioning of cabin, switch cabinet and electronics room
- Safe operation under extreme dust exposure
- Safe operation under extreme heat load
- Operation 24/7
- Extremely robust industrial design
- High corrosion protection in standard version
- Adjusted air flow and temperature distribution
- Easy operation
- Quiet operation
- Many options available
- Multi-stage quality control
Related guarantees:
- Health of the operating staff
- Increased efficiency of the operating personnel
- Long service life of electronic components
- High operational reliability
- Securing the production process
Product overview

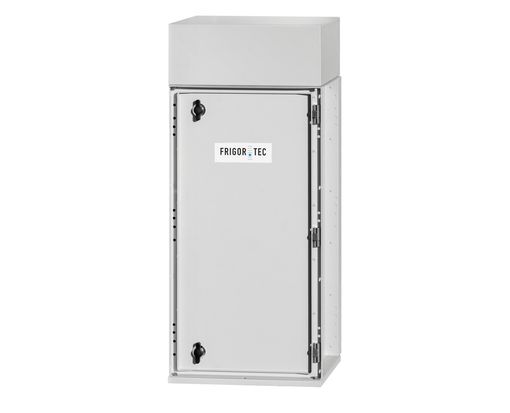

CRANEFRIGOR™Filtration System FS10 (self-cleaning)
- Installation: Outside, Floor
- Air flow: 0-900 m3/h
CRANEFRIGOR™ | Filtration System FS10 (self-cleaning) | Filtration System FT15 |
|---|---|---|
| Installation | Outside, Floor | Wall, Inside, Outside |
| Air flow | 1.500 m³/h | up to 235 cfm |
| Weight | ||
| Vertical | 150 kg | 77 l |
| DIMENSION | ||
| CO2-EQUIVALENT | ||
Air purification and overpressure control of control cabinets
Options
- Air quantity can be regulated continuously
- Stainless steel housing for increased corrosion protection
- Various special and secondary filters
- Individual designs with custom voltages, special coatings, etc.
Product description:
- Optimal fresh air supply for personnel
- Prevention of dust penetration, chemical gases and particles
- Effective filtering of dust and other particles from the air
- Long service life due to robust industrial design
- Power supply and control via crane air conditioning unit for combined operation of air conditioning unit and filter system
- Independent operation of the crane air conditioning unit also possible
- Easy maintenance and cleaning
- Quality control with factory trial run
- FT15 version - ideal for small rooms, control cabinet and crane cabin
- Simultaneous operation of several FT15 systems in larger rooms, e.g., E-rooms
- FS10 version with integrated cleaning function - ideal for extreme dust loads
- Significant reduction of maintenance, filter change and cleaning by using FS10
- Combined use of FT15 and FS10 systems also possible
Know-How
We make no secret of our decades of experience and know-how in the field of crane air conditioning and are happy to share our knowledge with you. Learn about user-relevant facts and background information.
When a crane air conditioning unit is necessary
Functionality and design of crane air conditioning units
Industry specific requirements for crane air conditioning units
Planning, installation and maintenance of crane air conditioning units
Highlights CRANEFRIGOR
- Comfort air conditioning of cabin, switch cabinet and electronics room
- Safe operation under extreme dust exposure
- Safe operation under extreme heat load
- Operation 24/7
- Extremely robust industrial design
- High corrosion protection in standard version
- Adjusted air flow and temperature distribution
- Easy operation
- Quiet operation
- Many options available
- Multi-stage quality control
Related guarantees:
- Health of the operating staff
- Increased efficiency of the operating personnel
- Long service life of electronic components
- High operational reliability
- Securing the production process
Product overview
CRANEFRIGOR™Heating device OH07
- Installation: Inside
- Heating capacity: up to 7,0 kW
- Temperature range: -25 °C to +30 °C
CRANEFRIGOR™ | Heating device OH07 |
|---|---|
| Installation | Inside |
| Air flow | up to 1.200 m³/h |
| Heating capacity | 7,0 kW |
| Weight | |
| Vertical | 35 kg |
| DIMENSION | |
| Vertical | 493 x 320 x 706 mm (L x B x H) |
| CO2-EQUIVALENT | |
Heating of control cabinets
Product description:
- Robust industrial design
- Optimal alignment of air output and fan
- Integrated air filter
- Remote installation possibility for controller
- Individual adaptation to the existing design
- Non-visible implementation in the interior possible
- Quiet operation through comfort controller
- Reduction of heating costs through standby function
- Integrated remote access
Know-How
We make no secret of our decades of experience and know-how in the field of crane air conditioning and are happy to share our knowledge with you. Learn about user-relevant facts and background information.
When a crane air conditioning unit is necessary
Functionality and design of crane air conditioning units
Industry specific requirements for crane air conditioning units
Planning, installation and maintenance of crane air conditioning units
Highlights CRANEFRIGOR
- Comfort air conditioning of cabin, switch cabinet and electronics room
- Safe operation under extreme dust exposure
- Safe operation under extreme heat load
- Operation 24/7
- Extremely robust industrial design
- High corrosion protection in standard version
- Adjusted air flow and temperature distribution
- Easy operation
- Quiet operation
- Many options available
- Multi-stage quality control
Related guarantees:
- Health of the operating staff
- Increased efficiency of the operating personnel
- Long service life of electronic components
- High operational reliability
- Securing the production process
Aldo discover
Arrange a consultation appointment
Our experts will be happy to advise you on the planning and implementation of your projects. Together we will find a perfect customised solution.
Arrange an appointment
