Powerful, thorough, quiet: How do air purifiers work?
The filter and fan of an air purifier determine the type and quantity of pollutants it can remove from the room air. Other features such as noise emissions provide information about the locations for which an air filter device is suitable.
Air purifying in different stages
As well as droplets and aerosols that spread the coronavirus and other diseases, fine dust, mould spores, pollen and other health hazards can pollute indoor air. Air filter devices equipped with corresponding filters remove these pollutants: They draw in the air with a fan, push it through various fine filters and direct it back into the room. In order for a filter device to meet the requirements for filter performance, air flow rate and noise emissions, its design must be well thought-out and balanced.
Air filters are usually made of cellulose, fine-mesh polyester or glass fibre media. They are divided into filter classes based on their separation efficiency and the size of the smallest particles they filter out of the air. Coarse dust filters serve as pre-filters in air purifiers. They trap larger impurities such as dust or hair that would otherwise quickly clog the finer filters downstream. After this, fine dust and other small particles are separated by fine filters. Particles smaller than 1 µm, such as aerosols and viruses, only get trapped in HEPA filters. This topic is looked at in a separate technical article. Class H 14 HEPA filters have a separation efficiency of at least 99.995%.
With the help of activated charcoal filters, gaseous pollutants can also be removed from the air. Activated charcoal is very porous and therefore has a large inner surface area: For 4 g of activated charcoal, this corresponds roughly to the area of a football field. Through this inner surface area, activated charcoal adsorbs pollutant molecules such as radon or chemical vapours. At the same time, it acts as a catalytic converter and accelerates the decomposition of gases such as ozone.
Sound insulation is expensive but necessary
The fan must be designed for the high device counterpressure generated by the filters being passed through in sequence, especially the fine H 14 filters. Since the counterpressure increases as the filters become more soiled, it should also have some power reserves. In order to sufficiently reduce the viral load in the room, the fan must circulate the room air six times per hour, according to Prof. Kähler from the Bundeswehr University Munich. On the other hand, HEPA filters must not be subjected to too high an air flow rate, as this would impair their performance.
The fan and the air flow inside the air purifier both lead to high noise levels. Sound insulating elements such as noise-absorbing mats, acoustically decoupled fans and silencers at the air inlet and outlet reduce the operating noise, but are expensive and take up a lot of space in the device. Even so, depending on where the air filter device is placed, effective sound insulation is essential. While a loud air purifier can still be tolerated in a foyer, it is very disturbing in a meeting room. Large fan blades reduce noise emissions because they displace more air at low speeds.
With UVC lamps and ionisers, the design is all-important
There are some things to consider if UVC lamps are used in an air purifier along with filters to get rid of mould, bacteria and viruses. The UVC irradiation must be powerful in order to achieve any disinfecting effect at all. Even the strongest UVC radiation is ineffective against UV-resistant bacteria though. The special lamps must also be completely encapsulated. This prevents the powerful light from radiating out of the device and damaging the retina. Furthermore, the UVC rays should not fall on plastic parts, as plasticizers may be emitted.
As well as that, some models are equipped with ionizers. These produce electrically charged molecules that adhere to pollutants such as house dust or pollen, and bind them together. This makes the particles heavier, and they fall to the ground. However, ozone is produced when ions are generated. This is a colourless gas that can cause headaches, coughing and breathing difficulties, and can be dangerous for asthma patients. Ionizers should therefore collect the ozone in the device instead of releasing it into the room air.

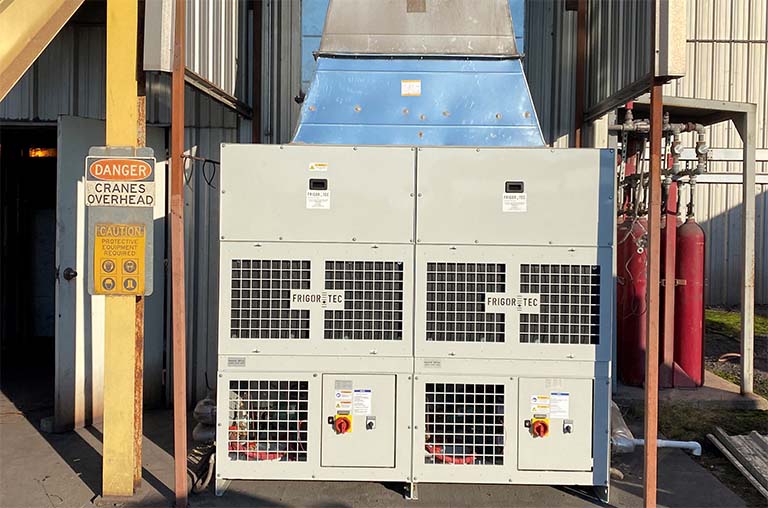

Industrial water cooled unit
The watercooled unit STANDARDFRIGOR FVWC is especially designed for conditioning of electrical equipment in large control rooms.

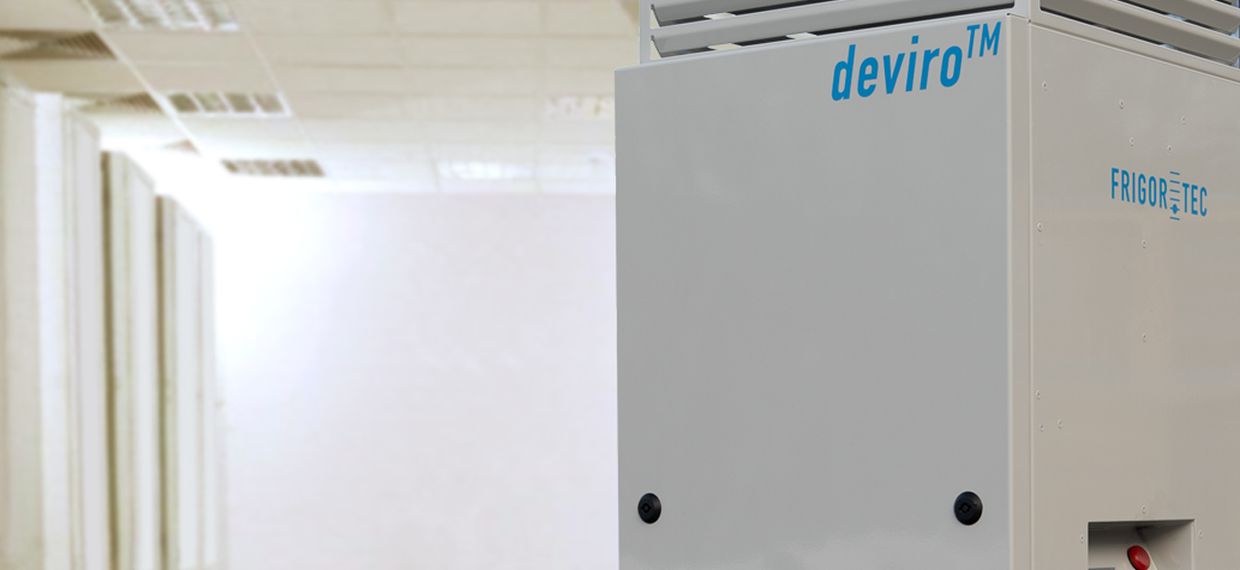

Air purifier deviro™
The deviro™ cleans room air of fine dust, viruses and other elements that are harmful to health using a three-phase filtration system.
Metal powder dryer POWDRYER™
The POWDRYER™ PD08 metal powder dryer is used to dry inorganic metal powder for the complex additive manufacturing (3D printing) process.
The dehumidifiers are used when perishable goods are being stored that would otherwise be damaged by moist air.
With the heat pumps from FrigorTec, the energy of a warm aeration / gas removal or waste water is usually exploited.
More know-how articles
Why winter is favourable to coronavirus and weakens the immune system
Many types of viruses thrive in favourable conditions in winter. They can survive for long periods in the dry, cold air, and people spend more time indoors. On the other hand, our immune system weakens due to the dry air and lack of sunshine. This combination makes coronavirus and other pathogens more dangerous in winter than in summer. However, humidifiers and air purifiers can help to keep us healthy throughout the cold months.
Correctly positioned air purifiers complement regular airing
The viral load of indoor air can be significantly reduced by regular airing combined with the use of air purifiers. These also make it possible to remove coronaviruses, fine dusts, and bacteria, even in rooms without windows, and in crane driver cabs. In order to achieve an even distribution of purified air, some rules should be observed when setting up an air filter device.
Why room air hygiene should also be given priority after Corona
The Corona pandemic has abruptly brought home to us how air in indoor spaces is often contaminated and dangerous to health. Air purifiers protect us from viruses, fine dust, mould spores and other airborne contaminants that will continue to affect our health and well-being after the current pandemic has been contained.
Reduce the need for artificial snowmaking with snow cooling units
Artificial snow sysems secure economic viability in many ski regions. At the same time, they attract criticism due to their high water and energy requirements. Snow cooling units offer operators the chance to reduce their artificial snow requirements while saving costs and resources.
HEPA Filters: Using physical tricks to capture particles
HEPA filters are among the most efficient mechanical filters and remove up to 99.995% of contaminants from the air. They rely on the movement characteristics of different small particles to do so. Based on standardised filter classes, inefficient HEPA filters are easily distinguished from HEPA filters that are actually effective.
How air purifiers can contribute to improving health protection
The question of whether or not mobile air purifiers reduce the risk of viral disease and can help to improve health protection can be answered with a ‘yes’. That is what the current study by the Institute of Fluid Mechanics and Aerodynamics at Universität der Bundeswehr München has found.
Requirements for water-cooled chillers for use in heavy industry
Due to advances in automation and constant increases in computing power, proper cooling of electrical systems is critical for reliable 24/7 operation. For this purpose, heavy industries can benefit from a coolant that they already use in large quantities – river or brackish water.

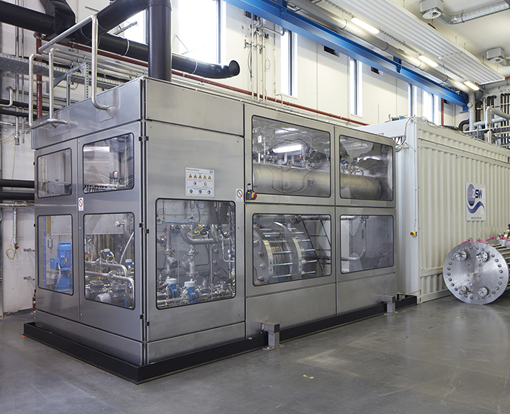

Electrolysers – the climate-neutral technology of the future
