Economical introduction and operation of grain chilling

Increased economic efficiency through preservation of the stored goods

The extent to which grain chilling protects the grain also depends on the type of grain. In any case, cooling preservation prevents loss of mass through cellular respiration, damage from insect activity and contamination with mould and the resulting mycotoxins. In the case of oilseeds, the oxidation process is additionally prevented, while in the case of seed and brewing cereals, the germination capacity is retained. In addition to protecting the grain quality, effective grain chilling pays off above all by extending the storage time. For example, lowering the grain temperature from 24 °C to 10 °C at a humidity of 14.5% increases the maximum safe storage period by a factor of 5.

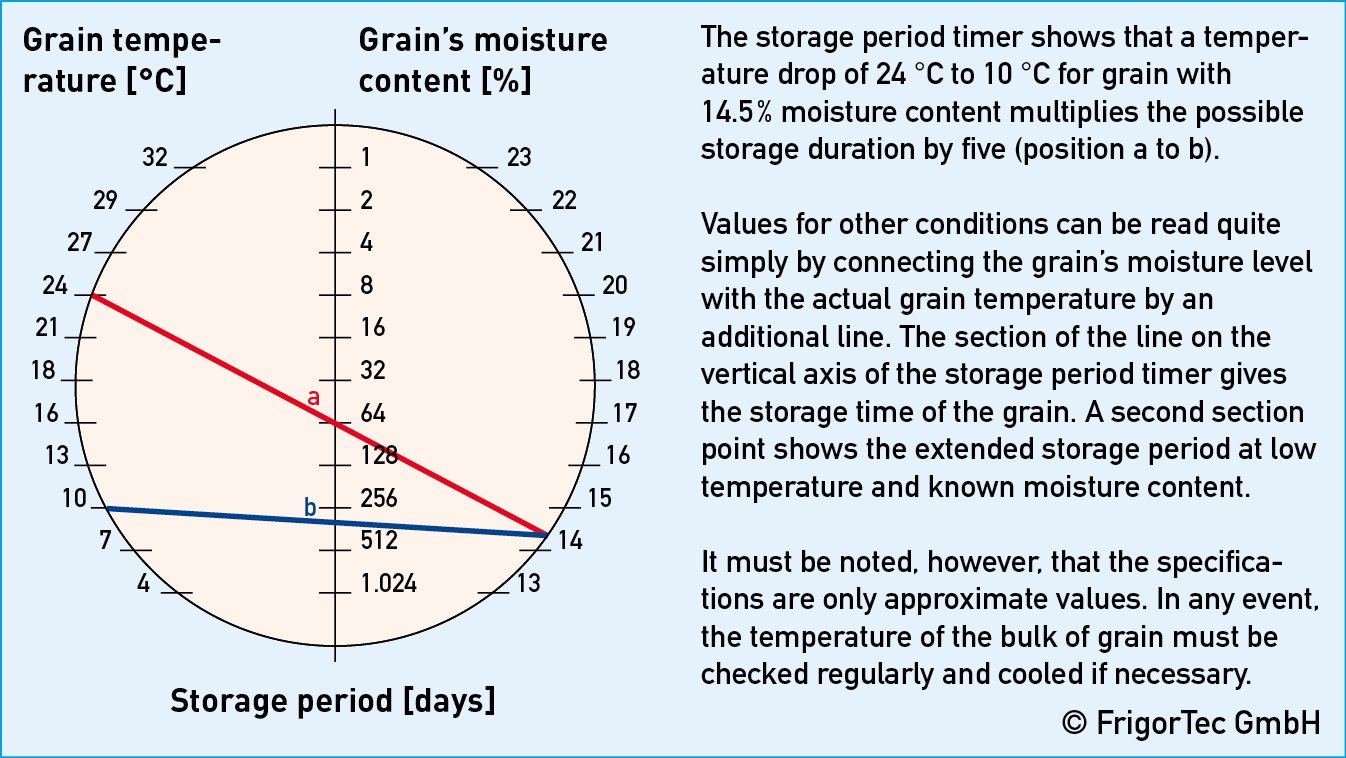

Storage period timer for grain

Lower costs for drying, transfer in stores and chemical treatments

Grain chilling eliminates the need to redistribute the grain in stores. This avoids costs due to abrasion losses and the energy requirements of the conveyor systems. In addition, no free silo cells have to be kept available. Subsequent drying of the grains is less energy-intensive due to the drying effect of the previous grain chilling. The gentler dehumidification also leads to fewer stress cracks. If grain chilling replaces chemical treatment, there is no need for chemical substances and storage protection measures.

Cost efficiency depends on choosing the right grain chilling device

It is essential for the most economical grain chilling to match the cooling solution to the application. Which crops should be chilled under which conditions? Is the crop already ventilated before chilling? Grain chillers of an unsuitable performance class cannot adequately regulate the temperature and humidity in the bulk grain, consume energy disproportionately or incur unnecessarily high acquisition costs. Consultation with FrigorTec at an early stage guarantees the selection of a suitable grain chilling device that economically fulfils the customer-specific requirements. In most cases, economic considerations result in a payback period of one to two years.

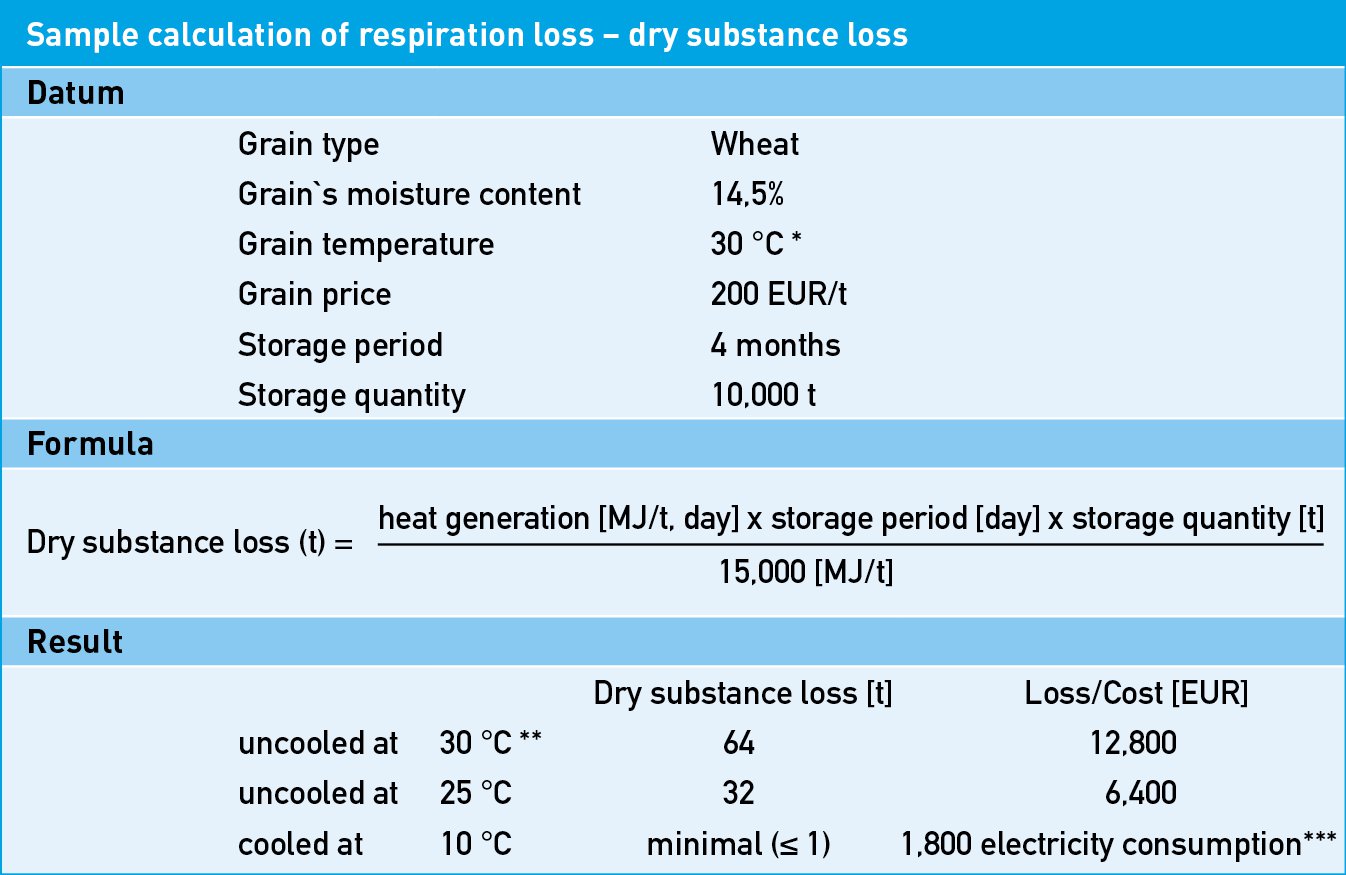

* After drying or in summer directly from the field
** Assumptions: 4.5 kWh/t electricity consumption and 0.04 EUR/kWh electricity costs

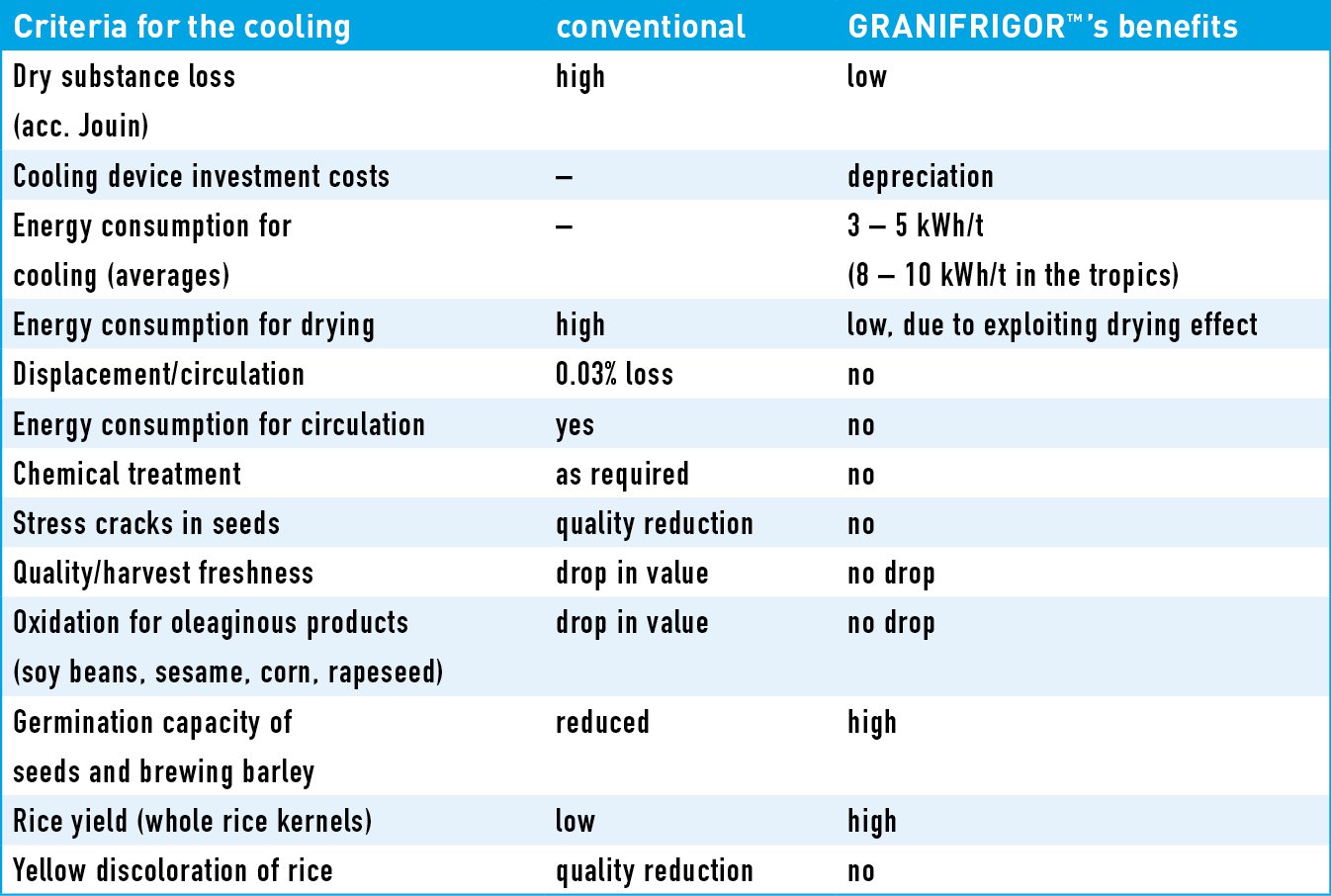

Criteria for the calculation of profitability of conservation chilling

Modern devices reduce operating costs

The energy requirement of a grain chilling device depends on the temperature and humidity of both the grain and the ambient air. For the most economical operation, grain chilling units should be intelligently designed and equipped with modern functions. Crucial features are, for example, efficient electric motors, frequency-controlled fans, favourable flow control and a summer and winter thermostat. A summer thermostat interrupts the chilling process during the afternoon heat, since the cooling of the air would consume a lot of energy at this point. Modern grain chillers are efficiency-optimised in many ways. In some devices, for example, the post-connected heating unit is completely powered by the energy of the chilling circuit.

Further increase in economic efficiency through fully automated controls

Numerous factors are involved in the correct setting of a grain chillers. Many modern devices already process all relevant information fully automatically in one control unit. Thanks to the intelligently designed controls, the silo operator only has to enter three parameters: grain type, grain moisture and storage type. Optionally, data from measuring instruments can be fed from the store. The simplicity of settings means that no specific knowledge of the stored grains or additional training from the operating personnel are required. Automated control also simplifies data and sample acquisition. This ensures correct grain chilling even with few operating personnel at one location. Fully automated grain chilling units pay off in the long term for agricultural companies of all sizes.
